RXRB-01(E)
RAIXIN
8537109090

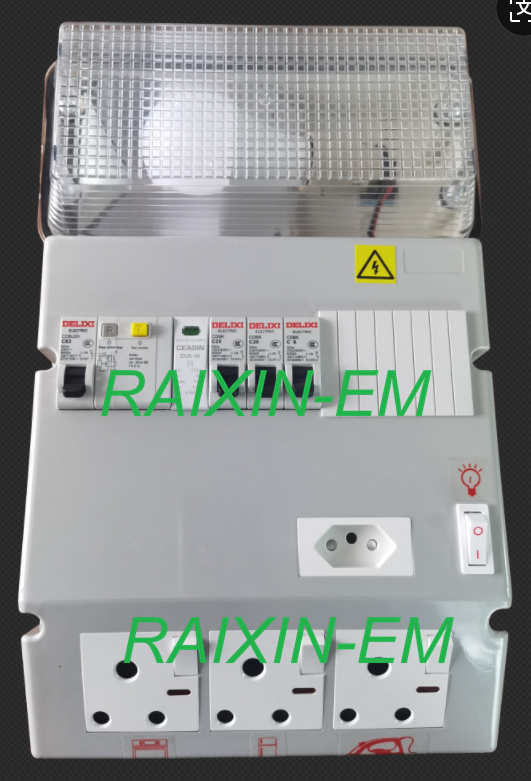

Extendable type SPDUs (EXTENDABLE READY BOARD)
Extendible type SPDUs have one knockout hole/cable entry on either side and at least four knockout holes/cable entries for future wiring in both the top and the bottom.
The internal wiring space shall be adequate to allow for all the wiring to the full complement of MCBs and external circuits.
An extendible type SPDU fits with both an earth bar and a neutral bar.
The earth bar and the neutral bar shall comply with the requirements of BS249 or SANS 1765.
SERVICE CONDITIONS of READY BOARD
The service conditions shall be as follows:
o altitude (above sea level) 1,600m
o maximum outdoor temperature 40C
o minimum outdoor temperature 10C
o maximum monthly mean temperature 35C
o annual mean temperature 22C
o maximum relative humidity 60% to 96%
o isokeraunic level tropical
o maximum wind velocity 58km/h
o prevailing wind direction SE and NW
o type of atmosphere coastal
Environmentally, the region where the work will take place is a coastal area, subject to an overall medium relative humidity, which can give rise to condensation. Onshore winds are frequently salt laden. On occasions, the combination of salt and condensation may create pollution conditions for outdoor insulators. Therefore, outdoor material and equipment shall be designed and protected for use in exposed, polluted, salty, corrosive and humid coastal atmosphere. Indoor material and equipment shall be designed and protected for use in buildings, which occasionally may be wet and damp.
SYSTEM CONDITIONS of READY BOARD
The equipment shall be suitable for installation in supply systems of the following characteristics:
o frequency: 50Hz
o nominal system voltages 33kV
11kV
400/230V
o maximum system voltages: 33kV 36kV
11kV 12kV
o maximum LV voltage 440/253V
o minimum LV voltage 374/215V
o nominal short circuit levels: 33kV 25kA
11kV 25kA
LV 7.5kA
o insulation levels:
1.2/50μs impulse
(positive and negative polarity): 33kV 170kV
11kV 75kV
power frequency (one minute withstand, wet): 33kV 70kV
11kV 28kV
LV 3kV
o neutral earthing arrangements: 33kV effectively earthed
11kV effectively earthed
LV effectively earthed
o creepage distance: 30mm/kV
(of maximum system voltage)
Quality Assurance
This product is in compliance with ISO 9000 or equivalent national standard.
Technical Specifications
| Name | Extendible Ready Board-Samll Power Distribution Unit (SPDU) |
Type | RXRB-01(E) (optional) |
| Standards | IEC 60060, IEC 60898-1, IEC 61009-1, IEC 600309 Group C, C2a |
| Rated Voltage Frequency | 220/230V 50/60HZ |
| Earth Leakage Circuit Breaker | 1×32A DZ47LE-63,2-Pole, 32A Earth Leakage Protection (optional) |
| Circuit Breakers (MCBs) | 1×20A Circuit Breaker, 1×10A Circuit Breaker, 1×SPD, (space for addtional five circuit breakers) (optional) |
| Terminal | With Seperated PE and N bar |
| Socket Outlets | 3x16A Socket Outlets Type F (optional) |
| Enclosure Material | Injection Moulded Plastic (Anti-Flaming Polycarbonate) |
| Protection Class | Socket IP44 |
| Casing IP44 | |
| Anti Vandal Bulkhead Luminiaire Fitting | |
| Lamp | LED 7W |
| Lamp Holder | Pin type E27,with a bayonet lamp holder complies with IEC 61184 |
| Main Supply | 220/230V 50/60HZ |
| Bulkhead | Black/Transparent |
| Light Chamber Protection Level | IP44 |
| Bulkhead Material | Injection Moulded Plastic (Polycarbonate Cover) |
| Ambient | Suitable for indoor or outdoor use |
Outline and Circuit Diagram
