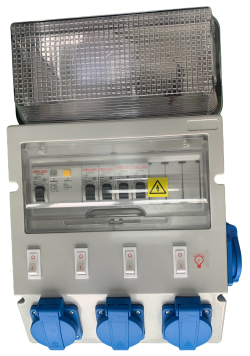

What standards should the overall sealing performance of rural electrical ready boards in Africa meet? In the rain test, should there be no water ingress inside?

For the usage environment in rural areas of Africa, the sealing performance of lighting electrical ready boards needs to meet the protection level standard of IP54.

After the standard rain test, there should be no water ingress inside the lighting electrical ready board, or even if a very small amount of water enters, it should not affect the normal and safe operation of the equipment.

Based on the specific technical requirements of the International Electrotechnical Commission IEC 61439 standard, rural areas in Africa often face challenges such as heavy rain, dust, and insect infestations, and require high power supply stability. Therefore, strict requirements are placed on dust and water prevention.

IP54 allows a small amount of dust that does not interfere with device operation or affect safety to enter. Prevent low-pressure water jets from all directions from entering. Test parameters: Use a nozzle with an inner diameter of 6.3mm, a water flow rate of 12.5L/min, a distance of 2.5-3 meters, and spray water in all directions for at least 3 minutes. Upgrading from "dustproof" to "dust tight" can better cope with the rainstorm and dust environment in the rainy season in rural Africa.

Qualification criteria for rain test

After the rain test, the determination of "no water ingress inside" is not only based on visual observation, but also requires the following strict conditions to be met:

1. Direct inspection: After opening the cabinet door, there should be no visible signs of water accumulation or seepage inside (especially key parts such as wiring terminals, circuit boards, switch components, etc.).

2. Electrical safety testing: Electrical performance verification must be carried out immediately after the test to ensure that the insulation resistance is normal (usually required to be greater than 2M Ω); No short circuit phenomenon; Normal power on function (such as correct operation of indicator lights, switches, and circuit breakers); No risk of electrical leakage.

Special recommendations for rural environments in Africa

When selecting or installing, in addition to referring to standards, special attention should be paid to the following points to improve the reliability of the equipment in actual environments:

Prioritize IP54: Considering the heavy rainfall and long duration of the rainy season in rural areas of Africa, as well as the strong sandstorms in some areas, choosing an IP54 rated electrical ready board directly can provide more reliable long-term protection for equipment and reduce the risk of power outages or equipment damage caused by water ingress.

Pay attention to structural details: choose products with good design processes and avoid temporary sealing. Focus on checking whether the design of the following parts that are prone to water ingress is complete: door sealant gasket: should be integrally formed, wide and elastic, without any broken seams; Import and export of cables: Qualified waterproof joints or sealing treatment should be provided; Door locks, buttons, hinges: These moving parts should have specialized waterproof design.

Regular maintenance: Even if a high protection level enclosure is used, it is recommended to regularly check the aging condition of the sealing strip, and it is generally recommended to replace it every 2 years or so.

In summary, a qualified electrical ready board for rural use in Africa should have a shell protection level not lower than IP54 and should be able to pass the IP54 level rain test to ensure that the interior is dry and the electrical function is normal.
