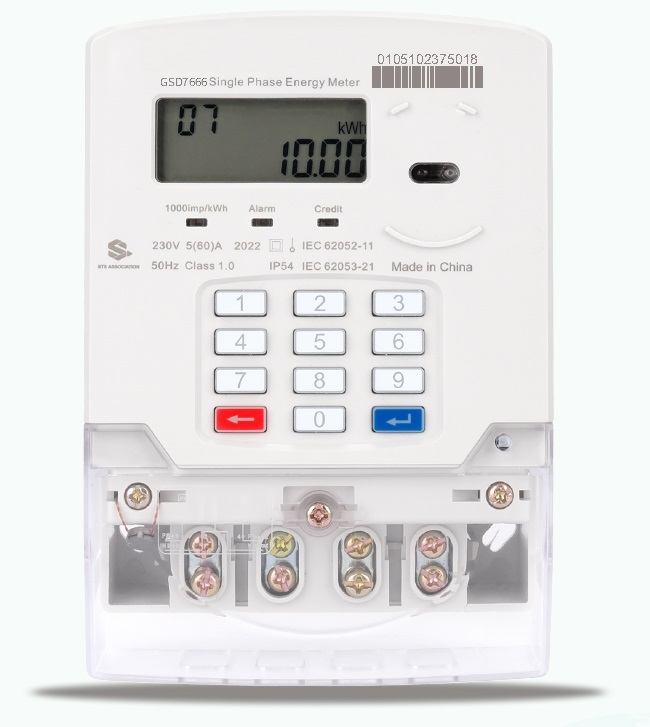

What is the difference between the rated current and the calibrated current of a prepayment meter?

Well, the user is asking about the difference between the rated current and calibrated current of a prepaid electricity meter. This question may seem a bit professional, but as someone who is new to it, I need to first understand the basic meanings of these two terms. Firstly, I should confirm the definitions of these two terms in the field of electricity meters, which may involve electrical parameters or standards.

Firstly, the term 'Rated Current' appears in many electrical equipment, usually referring to the maximum current value at which the equipment can operate safely for a long period of time. That is to say, if the current exceeds this value, the equipment may overheat or be damaged. And calibrated current may involve a reference point for calibration or measurement, which may refer to the reference current value of the meter during testing or calibration to ensure measurement accuracy.

Next, I need to verify the specific definitions of these two terms in electricity meters, especially prepaid meters. Possible standards such as IEC (International Electrotechnical Commission) or national standards may have relevant definitions. For example, the rated current may be divided into Ib (reference current) and Imax (maximum current), while the calibrated current may refer to the reference value used in the meter design to calibrate measurement accuracy.

In addition, it may be necessary to distinguish between different application scenarios of rated current and calibrated current. For example, the rated current may be related to the load capacity of the electricity meter. When selecting an electricity meter, users need to choose the appropriate rated current based on the current requirements of the electrical equipment to avoid overload. The calibration current may be related to the measurement accuracy of the meter, ensuring the accuracy of measurements within different current ranges.

Another possible confusion point is that some materials may use different terms, such as Basic Current and Maximum Current, and it is necessary to confirm whether these terms correspond to the rated current and calibration current. For example, the calibration current may be equivalent to the basic current Ib, while the rated current may refer to the maximum current Imax. The difference between the two is that Ib is the current that the meter can operate normally for a long time and meet the accuracy requirements, while Imax is the maximum instantaneous current that the meter can withstand but not necessarily guarantee accuracy.

In addition, prepaid electricity meters may have different working modes, such as direct connection and connection through transformers. At this time, the range of rated current may be different, and the calibration current may also be adjusted according to different wiring methods. It is necessary to clarify the differences under these application conditions.

In summary, it may be necessary to organize the following points:

1. Rated current usually refers to the maximum current that an electric meter can operate safely for a long time.

2. Calibration current is the reference current used in the design and calibration of an electric meter, which affects measurement accuracy.

3. The different roles of the two in the selection and use of electric meters: rated current is related to load capacity, and calibrated current is related to measurement accuracy.

4. There may be different terminology or symbol representations, such as Ib and Imax, which need to correspond to the correct Chinese terminology.

It is necessary to verify whether these understandings are correct, possibly by referring to the technical manual or relevant standards of the electricity meter. For example, the IEC 62053-21 standard may have detailed regulations on the current parameters of an electric meter, and the rated current may be divided into several categories, while the calibration current is the reference value used for calibration. At the same time, in practical applications, users need to choose an appropriate meter with a rated current based on the load current, while the calibrated current is set at the factory and cannot be adjusted by users, but it will affect the accuracy of billing.

Finally, it may be necessary to explain to users in easy to understand language, avoiding overly specialized terminology while ensuring accurate communication of the differences and practical meanings between the two.

The rated current and calibrated current in prepaid electricity meters are two key parameters that differ in functionality and application scenarios:

1. Rated current

Definition: Refers to the maximum current value at which an electric meter can operate safely for a long time and ensure measurement accuracy.

Function: Reflect the load capacity of the electricity meter. If the actual current exceeds the rated value, it may lead to an increase in measurement error or even damage to the meter.

Category:

Reference current (Ib): The current that an electric meter can operate stably for a long time, usually used as a reference for measuring accuracy.

Maximum current (Imax): The maximum current that an electricity meter can withstand for a short period of time (such as instantaneous overload), but accuracy may not be guaranteed when exceeded.

User focus: When selecting an electricity meter, it is necessary to match the rated current according to the peak load of the electrical equipment to avoid overload.

2. Calibration Current

Definition: The reference current value used for calibration and testing of an electricity meter at the factory, usually associated with the reference current (Ib).

Function: Ensure the measurement accuracy of the electricity meter within a specific current range, such as minimizing the error at the calibrated current point (such as Ib).

Technical significance: During the calibration process, the calibration current is the basis for adjusting the internal parameters of the electricity meter (such as pulse constant), which directly affects the accuracy of billing.

User Notice: The calibration current is set by the manufacturer and cannot be adjusted by the user. However, it is necessary to ensure that the operating current of the meter is as close to the calibration value as possible to maintain accuracy.

3. Core Differences

Parameter rated current calibration current

Define the reference current for maximum current calibration and accuracy testing for long-term safe operation

Focus on load capacity and overload risk measurement accuracy and calibration basis

User influence selection needs to match the actual load to affect billing accuracy, but there is no need for user adjustment

4. Practical application examples

If a certain electricity meter is labeled as "10 (40) A":

10A is the reference current (Ib), which is the reference value for calibrating current and long-term safe operation.

40A is the maximum current (Imax), which can be sustained for a short period of time, but exceeding 10A for a long time may increase the error.

If the user's load remains at 30A for a long time, they need to choose a meter with a higher rated current (such as 20 (80) A) instead of just looking at the calibrated current.

summary

The rated current is the "safety line" of the electric meter, which is related to the service life and stability of the equipment.

The calibration current is the "accuracy benchmark" of the electric meter, which is related to the accuracy of billing.

Both parties work together to ensure accurate measurement of the electricity meter within a safe range, and users need to choose the appropriate type based on their electricity needs.
