The application advantages of din rail electricity energy meters in the African countries.

Under the trend of digital transformation in global energy management, the demand for electricity energy metering equipment in non State Grid markets (including general markets in Europe and America, emerging markets in Asia, Africa, and Latin America) presents characteristics of convenient installation, flexible deployment, and modular functionality. The din rail electricity energy meter, with its compact design, standardized installation, and adaptability to distributed scenarios, has become the preferred energy metering solution for non State Grid market scenarios such as industrial and commercial, residential, and charging stations.

1、 Characteristics of Measurement Demand in Non State Grid Market

Compact installation space for industrial and commercial distribution cabinets, residential distribution boxes, and charging pile control cabinets is limited, and traditional wall mounted electricity energy meters are limited in installation, requiring adaptation to standardized guide rail installation.

Deploying flexible distributed energy, charging stations, and tenant energy metering scenarios requires decentralized deployment of electricity energy meters, requiring plug and play devices and fast networking.

Customization of functions varies greatly in different scenarios, with varying requirements for prepaid, multi rate, harmonic monitoring, remote control, and other functions, requiring modular product adaptation.

Compliance requirements specify that the European and American markets must comply with MID, CE, and IEC standards, while the Asian, African, and Latin American markets must meet local power grid or bidding certification requirements.

2、 Core technological advantages of din rail electric energy meters

Standardized installation, space saving. DIN rail installation is adopted, without the need for additional wiring and fixed brackets, directly integrated into the distribution cabinet/distribution box, saving 80% of installation space and adapting to standardized electrical cabinet design.

Modular design, plug and play, compact size, unified interface, supports quick replacement and expansion, reduces on-site installation and debugging time, and improves deployment efficiency.

Flexible communication, adaptable to multiple scenarios, supports RS485, NB IoT, 1, PLC and other communication methods, compatible with Modbus RTU, DLMS/COSEM standard protocols, and can be integrated with local energy management systems or cloud platforms.

Function integration, meeting diverse needs, integrating prepaid, multi rate, demand measurement, event recording and other functions, adapting to the measurement and management needs of different scenarios such as industrial and commercial, residential, charging piles, etc.

3、 Typical application scenarios and solutions

Industrial and commercial scenarios

Selection: Three phase rail type multifunctional electric energy meter (5S level), supporting Modbus RTU/DLMS, suitable for installation in distribution cabinets;

Value: Achieve sub item measurement of workshops, tenants, and equipment, real-time monitoring of electricity load, and provide data support for energy-saving renovation and cost accounting.

Residential Scene

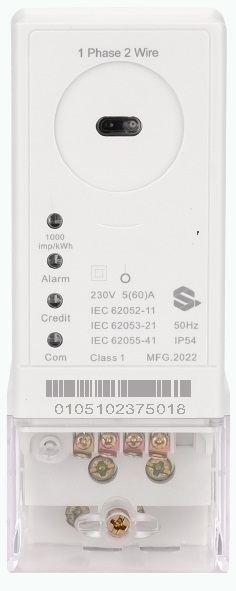

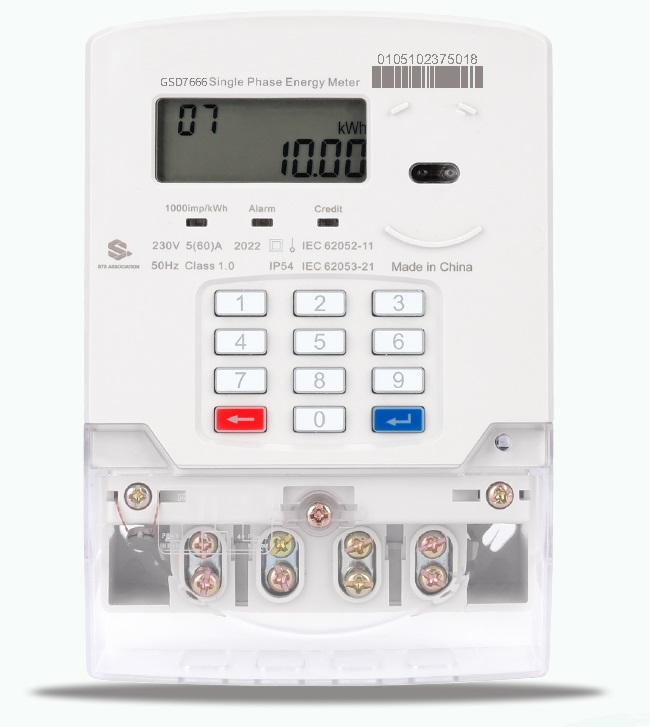

Selection: Single phase rail type prepaid electricity energy meter, supporting NB IoT/Cat.1 wireless communication;

Value: Achieve precise household measurement and remote fee control, support mobile APP payment, improve property management efficiency, and reduce the risk of arrears.

Charging station scenario

Selection: Single phase/three-phase rail type charging pile dedicated electric energy meter, supporting bidirectional energy metering and time-sharing billing;

Value: Accurately measuring the amount of charging electricity, adapting to peak and valley electricity pricing policies, supporting remote management and revenue accounting by operators.
