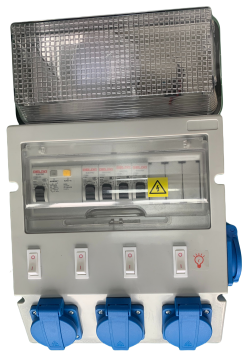

Specially designed for rural households in Africa: high standard dust-proof and waterproof lighting electrical ready board with bulkhead

A high standard dust-proof and waterproof lighting electrical ready board with bulkhead designed specifically for rural households in Africa, which must meet IP65 protection level and WF2 anti-corrosion level, adapt to dusty, humid and highly corrosive environments, use sturdy and durable materials and flexible installation design to ensure safe and stable power supply.

1、 Analysis of Core Protection Standards

IP65 protection level

Dustproof performance: Passed IP6X dustproof test, tested in a sand box for 8 hours without dust intrusion, ensuring that internal components are protected from sand and dust wear and short circuit risks.

Waterproof performance: Through IPX5 waterproof test, spray at a water flow rate of 12.5L/min for 3 minutes at a distance of 2.5-3 meters, adapt to the rainy season and humid environment in Africa, and prevent rainwater infiltration from causing leakage or short circuit.

WF2 anti-corrosion grade

In response to the corrosive environments such as strong acids, strong alkalis, and salt spray that may exist in rural Africa, stainless steel or fiberglass reinforced unsaturated polyester resin shells are used to effectively resist chemical corrosion and extend the service life of equipment.

2、 Environmental adaptability design

Materials and Structures

Shell material: 304 stainless steel or engineering plastic (such as ABS+PC composite material) should be preferred to balance strength and corrosion resistance.

Sealing design: Using silicone sealing strips and dual locking structures to ensure that there are no gaps after the box is closed, preventing dust and water vapor from entering.

Installation method: Supports wall mounted, hoop mounted, or floor mounted installation, suitable for different scenarios in rural Africa (such as earthen walls, wooden columns, or cement floors).

Temperature and altitude adaptability

The applicable ambient temperature range is -25 ℃ to 55 ℃, which is suitable for the large temperature difference between day and night in Africa.

The installation height does not exceed 2000 meters above sea level, covering most rural areas in Africa.

3、 Function and configuration optimization

Electrical parameters

Rated voltage: AC 220V/380V, compatible with single-phase or three-phase power supply systems in rural Africa.

Main circuit current: 60A-250A optional, branch current ≤ 63A, meeting the basic electricity needs of household lighting, television, refrigerator, etc.

Internal components: equipped with small circuit breakers (1P/2P/3P/4P), supporting overload and short circuit protection, and some models can be equipped with residual current devices (RCD) to enhance electrical safety.

Introduction port design

Support various wiring methods such as bottom in and bottom out, bottom in and top out, top in and top out, and top in and bottom out, to adapt to the wiring habits of simple houses in rural Africa.

A high standard dust-proof and waterproof lighting electrical ready board with bulkhead designed specifically for rural households in Africa, which must meet IP65 protection level and WF2 anti-corrosion level, adapt to dusty, humid and highly corrosive environments, use sturdy and durable materials and flexible installation design to ensure safe and stable power supply.

1、 Analysis of Core Protection Standards

IP54 protection level

Dustproof performance: Passed the IP54 dustproof test and tested for 8 hours in a sand and dust box without dust intrusion, ensuring that internal components are protected from sand and dust wear and short circuit risks.

Waterproof performance: Through IP54 waterproof test, spray at a water flow rate of 12.5L/min for 3 minutes at a distance of 2.5-3 meters, adapt to the rainy season and humid environment in Africa, and prevent rainwater infiltration from causing leakage or short circuit.

WF2 anti-corrosion grade

In response to the corrosive environments such as strong acids, strong alkalis, and salt spray that may exist in rural Africa, stainless steel or fiberglass reinforced unsaturated polyester resin shells are used to effectively resist chemical corrosion and extend the service life of equipment.

2、 Environmental adaptability design

Materials and Structures

Shell material: 304 stainless steel or engineering plastic (PC material) is preferred, balancing strength and corrosion resistance.

Sealing design: Using silicone sealing strips and dual locking structures to ensure that there are no gaps after the box is closed, preventing dust and water vapor from entering.

Installation method: Supports wall mounted, hoop mounted, or floor mounted installation, suitable for different scenarios in rural Africa (such as earthen walls, wooden columns, or cement floors).

Temperature and altitude adaptability

The applicable ambient temperature range is -25 ℃ to 55 ℃, which is suitable for the large temperature difference between day and night in Africa.

The installation height does not exceed 2000 meters above sea level, covering most rural areas in Africa.

3、 Function and configuration optimization

Electrical parameters

Rated voltage: AC 220V/380V, compatible with single-phase or three-phase power supply systems in rural Africa.

Main circuit current: 5A-63A optional, branch current ≤ 63A, meeting the basic electricity needs of household lighting, television, refrigerator, etc.

Internal components: equipped with small circuit breakers (1P/2P/3P/4P), supporting overload and short circuit protection, and some models can be equipped with residual current devices (RCBOs) to enhance electrical safety.

Introduction port design

Support various wiring methods such as bottom in and bottom out, bottom in and top out, top in and top out, and top in and bottom out, to adapt to the wiring habits of simple houses in rural Africa.

The inlet specifications cover G1/2 to G3 inches and are compatible with cable outer diameters ranging from 6mm to 55mm, making it easy to connect with existing lines.

4、 Practicality and maintenance convenience

Operation and maintenance

The box door adopts an independent hinge and metal spring plate design, which opens and closes smoothly, making it easy for regular inspection and component replacement.

Internally equipped with zero ground terminal protection cover, made of flame-retardant nylon PA66 material, to prevent accidental contact with live parts.

The back and bottom box adopt a four fold structure to enhance the anti deformation ability and facilitate the cleaning of accumulated dust.

Safety Warning

Printing warning signs on the surface of the box (such as "High voltage danger" and "Do not open by non professionals") to enhance users' safety awareness.

Equipped with grounding screws, it is required that the box is reliably grounded to prevent the shell from being electrified in case of lightning strikes or leakage.

5、 Market cases and user feedback

RXRB series applications

A rural project in Africa adopts RXRB waterproof, dustproof, and anti-corrosion lighting electrical ready board with bulkhead, which has been running for 3 years in saline alkali environment without corrosion, with an internal component integrity rate of 98%.

Users have provided feedback that the product is tightly sealed and has no water ingress during the rainy season. The installation is flexible and can be hung on wooden pillars, significantly improving the reliability of household electricity usage.

Equipped with 220V leakage protection and 5-hole socket, with a protection level of IP54, suitable for harsh construction environments.

The user rated it as "sturdy material, waterproof performance beyond expectations" and "easy to operate, workers can learn it as soon as they learn".
