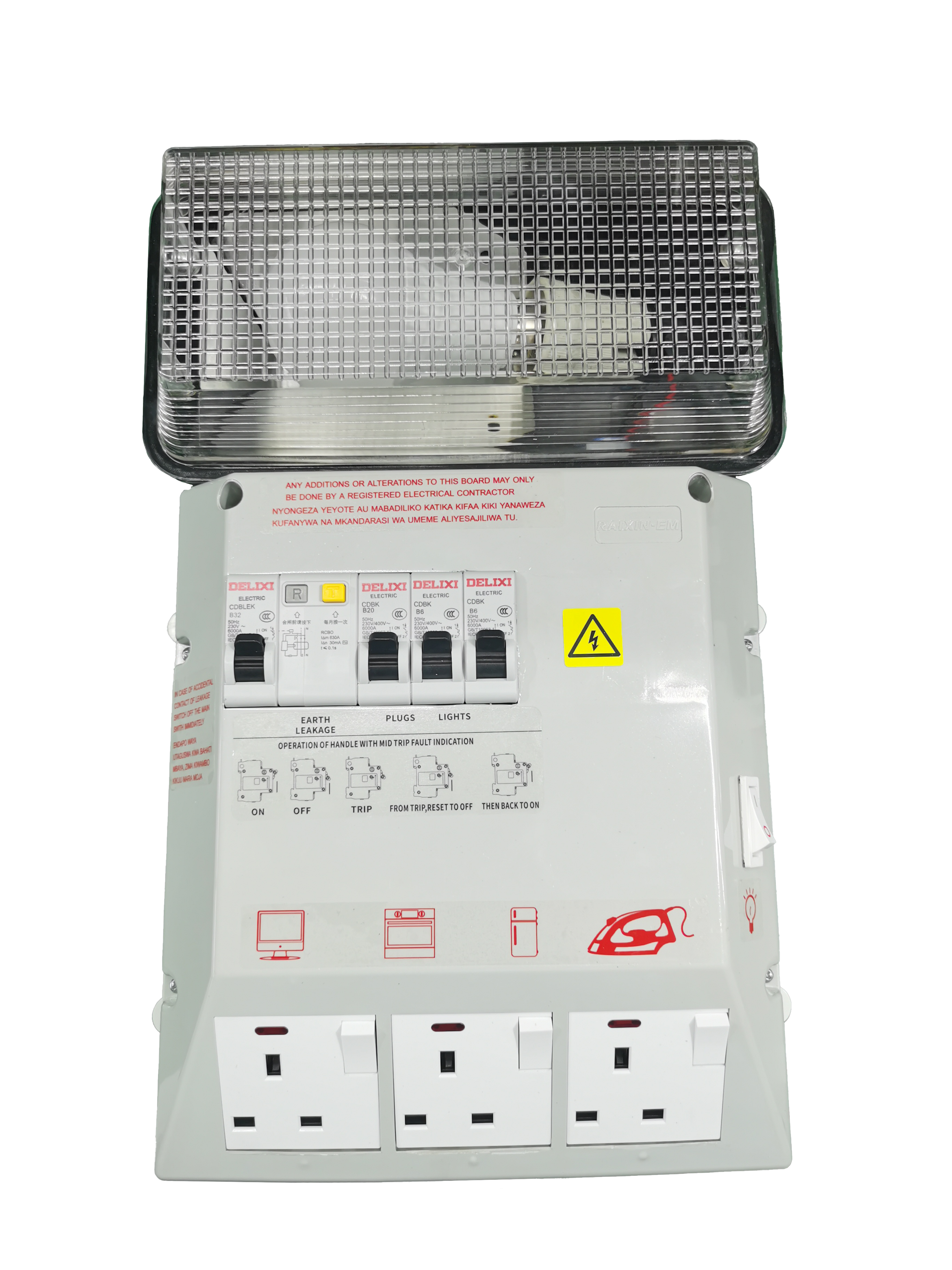

Rainforest moisture-proof sealing ring: innovative IP54 protection structure for lighting electrical ready boards in Tanzania

In the African region, the fire protection level of lighting electrical ready boards can be raised to V0 level by using self extinguishing materials that comply with UL94 V0 standards. These materials need to meet the core requirements of self extinguishing time not exceeding 30 seconds and no burning droplets igniting the cotton wool below in vertical combustion testing. Combined with engineering plastic modification technology and third-party testing certification, the fire safety of electrical ready boards in high-temperature, dry or humid environments in Africa can be systematically improved. The following is a specific analysis:

1、 Core requirements of V0 fire protection standard

V0 level is the highest flame retardant level in UL94 vertical combustion testing, and its core requirements include:

Self extinguishing time: After two 10 second flame impacts, the material burns for no more than 10 seconds each time, and the cumulative time does not exceed 50 seconds. The flame must extinguish on its own within 30 seconds after removing the source of ignition.

Droplet control: During the combustion process, no molten droplets should be generated, or the droplets should not ignite the degreased cotton placed below.

Total combustion time: In 10 ignition tests, the total combustion time needs to be controlled within 250 seconds (V0 level requires stricter requirements, usually much lower than this value).

2、 The technological implementation path of self extinguishing materials

Material selection:

Engineering plastic substrates: Priority should be given to using engineering plastics with inherent flame retardant potential, such as polycarbonate (PC), modified nylon (PA), and polybutylene terephthalate (PBT). For example, unmodified PC can reach V2 level, and after being treated with flame retardants, it can be upgraded to V0 level.

Flame retardant formula: Using phosphorus based, nitrogen based, or inorganic flame retardants (such as aluminum hydroxide) instead of traditional halogen flame retardants to improve flame retardant efficiency while reducing toxicity. Phosphorus based flame retardants block combustion by forming an insulating carbon layer, nitrogen based flame retardants dilute oxygen by releasing inert gases, and inorganic flame retardants lower temperature through endothermic reactions.

Structural optimization:

Double layer sealing design: An interference fit between protrusions and grooves is used at the joints of the electrical ready board, combined with the wavy cross-section of the sealing ring to achieve dynamic fit and prevent flames from entering through the gaps.

Balance between heat dissipation and flame retardancy: By optimizing the heat dissipation structure of the box (such as adding heat dissipation fins), material decomposition caused by local overheating can be avoided, while ensuring that the flame retardant layer fully covers key components.

3、 Targeted adaptation for African application scenarios

Environmental adaptability:

High temperature and dry areas: Choose flame retardant materials with strong weather resistance to prevent UV aging and reduce flame retardant performance. For example, PC/ABS alloys modified with UV stabilizers can maintain V0 level performance under long-term exposure to sunlight.

Wet coastal areas: By using nano coating technology to enhance the hydrophobicity of materials, we can avoid salt spray corrosion that leads to increased conductivity and short circuits. For example, depositing a nano layer of silica on the surface of flame-retardant PC to achieve a contact angle greater than 150 ° and achieve superhydrophobic effect.

Cost performance balance:

Layered protection strategy: V0 grade materials are used in critical areas (such as circuit breaker installation areas), and V1 grade materials are used in non critical areas to reduce overall costs through structural isolation. For example, the box frame is made of V1 grade flame-retardant ABS, and the internal partitions are made of V0 grade flame-retardant PC.

Localized supply chain: Collaborate with local material suppliers in Africa to develop flame retardant formulations based on local resources, such as plant fiber reinforced composite materials, to reduce import dependence. For example, using jute fiber to reinforce polypropylene (PP) and achieving V0 level through zinc borate flame retardant treatment.

4、 Certification and Quality Control System

Third party testing and certification:

Entrust international organizations such as SGS and T Ü V to conduct UL94 V0 level testing and obtain a complete report including sample number, testing conditions, and result determination. For example, the test report should clearly indicate "Pass UL94 V0 (2025 version standard)" and the test thickness (such as 1.5mm or 3.0mm).

Conduct the Glow Wire Test (GWIT) to simulate the internal overheating scenario of electrical appliances, verify the flame retardant performance of materials at high temperatures of 750 ℃, and supplement the limitations of vertical combustion testing.

Production process control:

Dispersion control of flame retardants: A twin-screw extruder is used to achieve uniform mixing of flame retardants and substrates, avoiding excessive local concentration and material brittleness. For example, real-time monitoring of flame retardant dispersion using an online infrared spectrometer ensures a deviation of less than 5%.

Finished product sampling system: Samples are taken at a rate of 5% per batch for retesting, with a focus on checking the ignitability of droplets. For example, place a standard degreased cotton cloth under the sample and observe if it ignites within 30 seconds.
