Principle of Remote Meter Reading for Intelligent Energy Meters

The remote meter reading technology of intelligent energy meters is the core link of the digital transformation of the power system. Its core principle is to achieve automated management of electricity data through a closed-loop process of "data collection communication transmission platform processing", completely replacing the traditional manual meter reading mode.

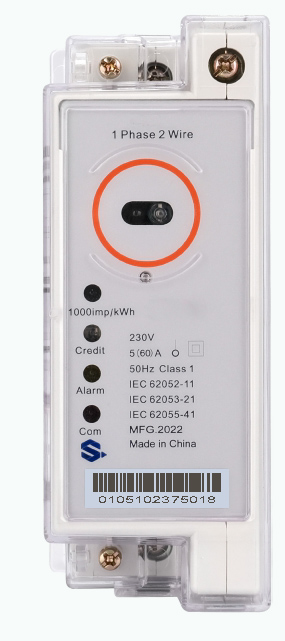

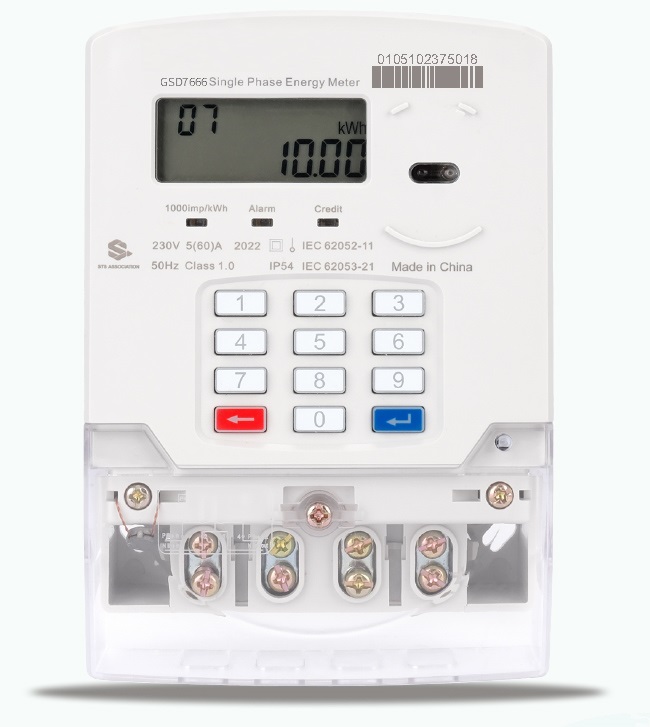

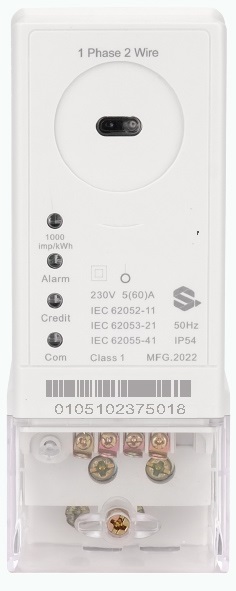

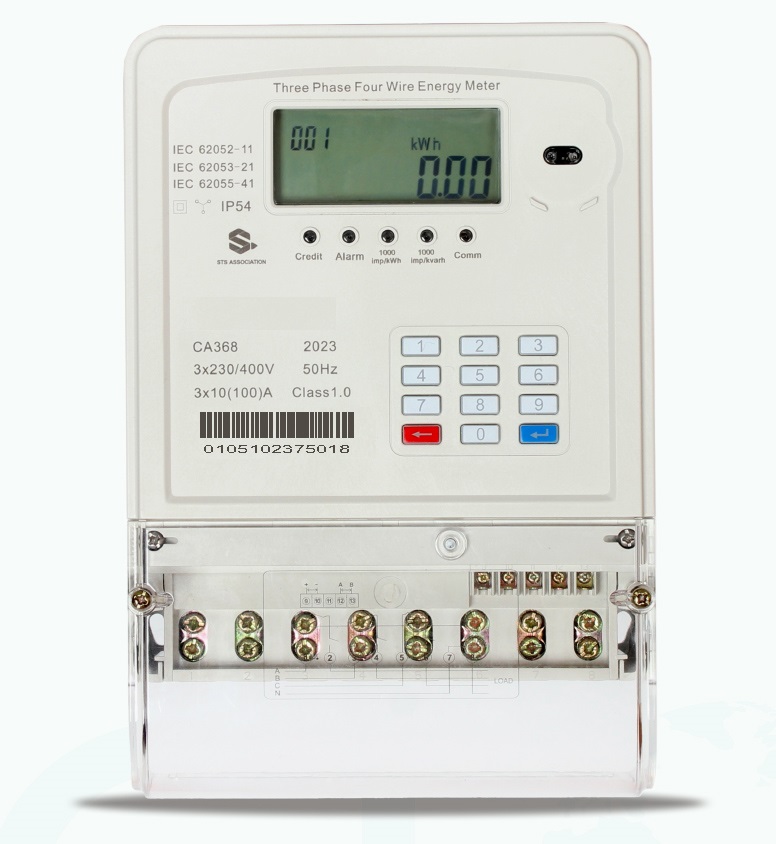

From the perspective of technical composition, the system is mainly divided into three parts: the intelligent energy meter at the front end is responsible for data acquisition, the built-in metering chip records real-time parameters such as voltage, current, power, etc., generates electricity consumption data every 15 minutes to 1 hour, and has data storage and preliminary verification functions to avoid data loss; The communication network in the middle is the key link, and current mainstream technologies include power line carrier (PLC), low-power wireless, and 4G/5G public network: PLC uses the power line itself to transmit data without additional wiring, suitable for centralized meter reading in residential areas; Micro power wireless provides short-range wireless signal coverage and is suitable for areas with strong power line interference such as rural areas; 4G/5G public networks are mostly used for large industrial and commercial users, supporting high-capacity and high-speed data transmission.

The data transmission process can be summarized as a "three-level jump": firstly, the smart energy meter transmits the collected electricity data to the "concentrator" in the building or substation area through a local communication network (such as PLC); The concentrator is equivalent to a "data transfer station", which aggregates all meter data in the area and uploads it to the main station system of the power company through a wide area network (such as fiber optic, 4G); The main station system is equipped with a big data analysis platform, which cleans, calculates, and stores data, automatically generates electricity bills, and monitors the operation status of the electricity meter in real time. Once abnormalities are detected (such as meter faults or electricity theft behavior), an alarm mechanism is immediately triggered.

In practical applications, this technology has been deeply integrated into daily life scenarios: residents can query their electricity consumption details in real time through the "Palm Power" app, avoiding "surprise billing at the end of the month"; The power company can accurately identify the "peak valley electricity consumption" pattern through data analysis, providing data support for the tiered electricity pricing policy; In the field of industry and commerce, remote meter reading can achieve "electricity load monitoring", helping enterprises optimize production scheduling and reduce electricity costs.

However, this technology also faces challenges: firstly, communication stability issues. Some old residential areas have aging power lines, which can interfere with PLC signal transmission and cause data loss; The second is data security risk, as electricity usage data involves user privacy, and the main station system needs to prevent hacker attacks; The third is the cost of equipment maintenance. The service life of smart meters is about 10 years, and large-scale replacement and maintenance require continuous investment. With the development of 5G technology and edge computing, these problems are being solved gradually. In the future, remote meter reading will move towards the direction of "more intelligent, safer and more efficient".
