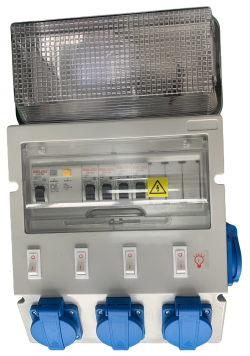

Overload protection response time ≤ 0.05 seconds: Reliability verification of rural household lighting electrical ready boards in Africa

If the overload protection response time of African rural household lighting electrical ready boards is required to be ≤ 0.05 seconds, strict thermal accumulation testing, dynamic load simulation, and environmental adaptability verification must be carried out, combined with bimetallic and electronic dual protection mechanisms. However, cost and reliability must be balanced, and it is preferred to choose miniature circuit breakers (MCBs) or electronic overload relays (EORs) that comply with IEC 60947-2 standards. The specific analysis is as follows:

1、 Technical implementation path: Dual metal sheet and electronic dual protection

Heat accumulation triggering mechanism

The core of overload protection is to monitor the impact of current thermal effects on conductors. When the current exceeds the rated value, the bimetallic strip bends due to the difference in thermal expansion coefficient, pushing the mechanical mechanism to cut off the circuit. According to IEC 60947-2 standard, the response time of bimetallic strips should be inversely proportional to the current multiplier:

1.3 times the rated current: no tripping within 2 hours (agreed non tripping current);

1.45 times rated current: trip within 1 hour (agreed trip current).

If the response time is required to be ≤ 0.05 seconds, electronic overload protection (such as electromagnetic release in thermal magnetic circuit breakers) must be relied upon, which monitors the current in real time through current transformers. When the current exceeds the threshold, the electromagnet instantly engages and drives the release mechanism to operate.

Dynamic load simulation verification

African rural household loads typically include lighting, low-power appliances (such as fans, televisions), and intermittent high-power devices (such as water pumps). The following scenarios need to be simulated:

Short term overload (such as starting a water pump): The current can reach 3-5 times the rated value, lasting for a few seconds;

Continuous overload (such as line aging): The current exceeds the rated value by 20% -50% for several minutes.

Through experimental verification, electronic overload protection can cut off the circuit within 0.01-0.05 seconds, while bimetallic strips require 0.1-1 second. Therefore, the dual protection mechanism (electronic as the main, bimetallic strips as backup) is crucial.

2、 Environmental adaptability verification: high temperature, humidity, and voltage fluctuations

High temperature environment testing

The average annual temperature in rural Africa often exceeds 40 ℃, and the temperature inside the electrical ready board may reach over 60 ℃. Need to verify:

Bimetallic sheet material: High temperature stable materials such as nickel chromium alloy are selected to ensure that the bending characteristics remain unchanged at 60 ℃;

Temperature resistance of electronic components: Capacitors, resistors, etc. need to pass high temperature and high humidity tests at 85 ℃/85% RH (relative humidity) to avoid parameter drift.

Voltage fluctuations and harmonic interference

The voltage fluctuation range of rural power grids in Africa is large (160V-280V), and it contains a large amount of harmonics (such as the output of solar inverters). Need to verify:

Overvoltage/undervoltage protection: When the voltage exceeds 270V or falls below 160V, the circuit will be cut off within 0.05 seconds;

Harmonic suppression: Using filtering circuits or wideband current transformers to ensure accurate detection of overload even when the harmonic content is 20%.

3、 Cost and reliability balance: MCB vs. EOR

Miniature Circuit Breaker (MCB)

Advantage: Low cost（

5−

15) Easy installation, in compliance with IEC 60898 standard;

Limitations: The response time of overload protection is usually ≥ 0.1 seconds, which needs to be optimized through selection (such as C-curve).

Electronic Overload Relay (EOR)

Advantages: Response time ≤ 0.05 seconds, programmable multi segment protection curve setting;

Limitations: High cost（

30−

100), requires professional debugging.

Recommended solution:

Economy type: Choose MCB with electronic release (such as Schneider C65N-DC), achieve 0.05 second response through parameter settings;

High end model: adopting EOR (such as Siemens 3UF7), integrating overload, short circuit, and leakage protection, suitable for solar microgrid scenarios.

4、 On site verification method: load testing and fault recording

Actual load testing

Connect typical loads (such as 100W LED lights+500W water pumps), simulate overload scenarios, and record trip times;

Test points: Response time at 1.1 times, 1.5 times, and 2 times the rated current.

Fault recording and analysis

Install smart meters to record the time of overload events, current values, and tripping actions;

Optimize the protection threshold through data analysis to avoid misoperation (such as water pump start-up shock).

5、 Standards and certifications: Compliant with IEC and local regulations in Africa

International Standard

IEC 60947-2 (Low Voltage Switchgear): specifies the relationship between overload protection response time and current multiples;

IEC 60898 (Household Circuit Breakers): defines C-type and D-type curves, applicable to different load types.

Local norms in Africa

Kenya: KEBS standard requires electrical ready boards to pass salt spray testing (coastal areas);

Nigeria: SONCAP certification mandates overload protection function.
