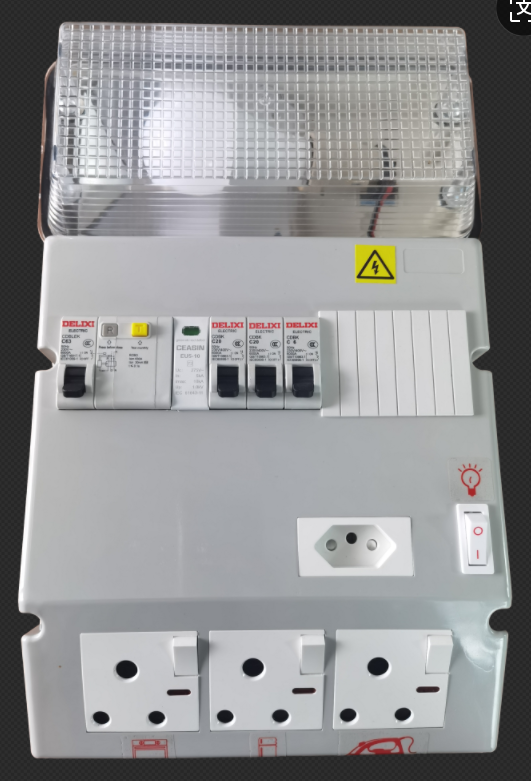

Optimized Lighting Electrical Ready Board for African Rural Areas: Adapting to Rural Electricity Needs with Space, Heat Dissipation, and Clear Wiring

In rural areas of Africa, lighting electrical ready boards are key equipment for ensuring household and basic electricity supply. However, the characteristics of high temperature exposure, high dust, large voltage fluctuations in the power grid, and limited operation and maintenance resources in the local area require higher adaptability of the electrical ready board. This optimized lighting electrical ready board for African rural areas, based on the three core advantages of "optimized internal wiring space, efficient heat dissipation, and clear wiring", strengthens protection design for pain points in rural scenes, and provides safe and reliable electricity solutions for African rural households.

1、 Customized internal wiring space: suitable for diverse rural electricity consumption, balancing expansion and dust prevention

The demand for electricity in rural Africa is characterized by "basic+gradually upgrading", which not only needs to meet the basic needs of current lighting and small household appliances (such as radios and mobile phone chargers), but also needs to adapt to the expansion needs of future household electricity equipment. At the same time, it is necessary to address the problem of dust intrusion in rural environments:

Partition wiring+dust-proof isolation design: A detachable dust-proof partition is used to isolate the circuit breaker and wiring terminals from the external space. Sealing strips are added to the edges of the partition to reduce dust entry; At the same time, modular partitioning is carried out according to the "lighting circuit, socket circuit, and backup circuit" to avoid cross winding of lines. Even if rural users simply connect the wires themselves, they can maintain internal regularity.

Large margin expansion space: Considering that African rural households may add new devices such as electric fans in the future, an additional 40% of wiring and component installation space will be reserved on the basis of meeting the current demand for 2-3 lighting and 1-2 sockets. Expansion can be completed without replacing the box, reducing subsequent renovation costs.

Scratch resistant wiring channel: For thicker copper core wires commonly used in rural areas, a widened arc-shaped wiring groove is opened on the inner side of the box, which is fixed with insulated anti slip wire clips to avoid friction and damage between the wire and the sharp edge of the box, and to prevent the wire from loosening due to wind or animal contact.

2、 High temperature adaptive heat dissipation: to cope with exposed environments and ensure stable operation

Most electrical ready boards in rural Africa are installed outdoors or in simple sheds. Under high temperatures and direct sunlight in summer, the temperature inside the box can easily exceed 50 ℃, making it difficult for ordinary heat dissipation designs to meet the requirements. This electrical ready board ensures stable operation in high-temperature environments through a dual approach of strengthening passive heat dissipation and adapting to high-temperature components

Upgraded passive cooling structure: The enclosure is made of PC material, which increases thermal conductivity efficiency by 20%. Even in a high temperature environment of 45 ℃, the temperature inside the enclosure can be controlled within 35 ℃.

Compatible with high temperature resistant components: Core components such as internal circuit breakers and wiring terminals are all selected with high temperature resistant models, with a maximum temperature tolerance of 80 ℃ to avoid accelerated aging or tripping faults caused by high temperatures; At the same time, insulation cotton is pasted inside the box to reduce the conduction of external high temperature into the box and further protect the components.

3、 Simple and clear wiring: adapted to rural operation and maintenance conditions, reducing operational difficulty

There are few professional operation and maintenance personnel in rural areas of Africa, and the wiring of electrical ready boards needs to be "clear and easy to identify+easy to operate" to avoid misconnection or difficult maintenance caused by complex wiring. This product is designed with "intuitive identification+simplified operation", making it easy for rural electricians and even users with basic knowledge of electricity to operate:

Multi language visual identification: Each wiring terminal and circuit interface inside the box is clearly labeled with an icon and local common language (such as English, French, or local language) instructions. For example, the "light bulb" icon is used to label the lighting circuit, and the "socket" icon is used to label the socket circuit. The identification is printed with high-temperature and wear-resistant ink, which is not easy to fade even after long-term exposure to sunlight. Users can quickly locate the target line.

Tool free anti misconnection terminal: using large-diameter press type terminal blocks, the wire can be fixed by pressing the buckle after insertion, without the need for a screwdriver, suitable for situations where tools are incomplete in rural areas; At the same time, the terminal has an anti reverse insertion structure, and the neutral wire (blue terminal), live wire (red terminal), and ground wire (yellow green dual color terminal) are clearly distinguished to avoid reverse connection faults from the source.

Simplify line storage: Manually adjustable wire clips and shallow groove wiring areas are set on the inside of the box. Excess wires can be directly inserted into the wiring area without complex organization, which can avoid wire hanging and shaking, and maintain internal cleanliness, making it easy to quickly sort out the lines during subsequent maintenance.

4、 Applicable scenarios and core values

This optimized lighting electrical ready board for African rural areas is precisely adapted to rural electricity scenarios and is mainly used for:

Rural households: meet basic electricity needs such as household lighting, mobile phone charging, and small household appliances, and reserve expansion space to adapt to future electricity upgrades;

Its core value lies in: adapting customized space design to meet the upgrading needs of rural electricity consumption, ensuring stability in harsh environments through high-temperature adaptation and heat dissipation, reducing operation and maintenance barriers through simple and clear wiring, truly fitting the actual electricity consumption conditions in rural Africa, and providing reliable support for local basic electricity safety and quality of life improvement.
