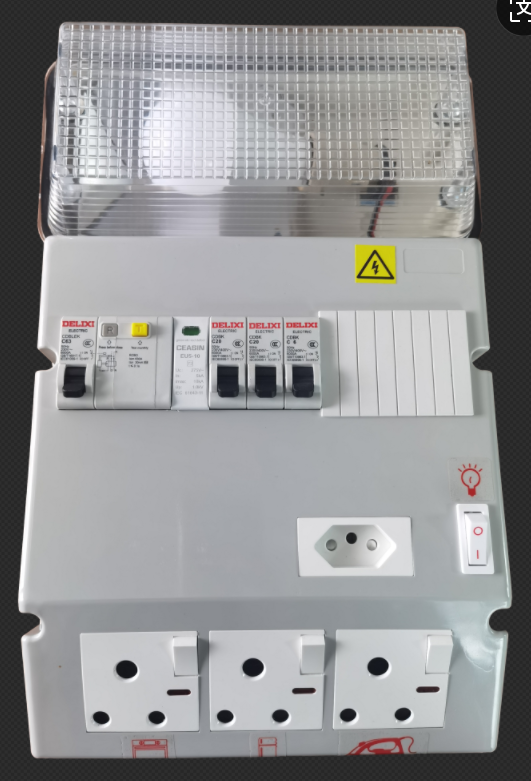

Lighting electrical ready board with built-in surge protection device (SPD) to absorb lightning induced overvoltage

Lighting electrical ready board with built-in surge protection device (SPD): an effective protective tool for absorbing lightning induced overvoltage

In modern electrical systems, the lighting electrical ready board is the core component that ensures the stable operation of lighting equipment, while lightning induced overvoltage is an important hidden danger that threatens the safety of electrical equipment. The lighting electrical ready board with built-in surge protector (SPD) cleverly combines the lighting distribution function with lightning protection function, which can efficiently absorb lightning induced overvoltage and build a solid safety barrier for the lighting system and related electrical equipment.

1、 Core function: Accurately respond to lightning induced overvoltage

Lightning induced overvoltage refers to the electromagnetic field that changes in the surrounding space when lightning strikes the ground or other objects near buildings or power lines, causing overvoltage to be induced on nearby conductors such as power lines and communication lines. This type of overvoltage has the characteristics of high voltage amplitude, fast rise speed, and short duration. Once it invades the lighting electrical ready board and subsequent lighting equipment, it can cause damage to the lighting fixtures, paralysis of the lighting system, and serious electrical fires, resulting in serious property damage and safety accidents.

The core advantage of a lighting electrical ready board with built-in SPD is that the built-in surge protector can quickly respond to lightning induced overvoltage. When overvoltage exceeds the set threshold in the circuit, SPD will conduct in a very short time (usually calculated in nanoseconds), releasing the huge energy generated by the overvoltage to the ground through the grounding system, thereby clamping the voltage in the circuit within a safe range and avoiding damage to the switches, fuses, contactors inside the electrical ready board, as well as downstream lighting fixtures, controllers and other equipment caused by overvoltage.

2、 Working principle: Fast response, efficient discharge

The working principle of the lighting electrical ready board with built-in SPD can be divided into three key stages to ensure efficient protection against lightning induced overvoltage:

Monitoring stage: When the electrical ready board is running normally, the built-in SPD is in a high resistance state, like an open circuit, which does not affect the normal power supply of the lighting system, ensuring that the current is smoothly transmitted through the electrical ready board to various lighting equipment and maintaining the stable operation of the lighting system.

Response phase: When lightning induced overvoltage invades the line, causing the line voltage to instantly rise and exceed the SPD's operating voltage threshold, the core components of the SPD (such as zinc oxide varistors, gas discharge tubes, etc.) will quickly breakdown or conduct, reducing the impedance of the SPD to an extremely low level and forming a low impedance discharge channel.

Leakage and recovery stage: After the SPD is turned on, the large current generated by lightning induced overvoltage will be quickly discharged to the ground through the grounding system of the SPD and electrical ready board, effectively suppressing the rise of line voltage. When the induced overvoltage caused by lightning strikes disappears and the line voltage returns to normal, the core components of SPD will automatically return to a high resistance state, stop leakage, and ensure that the lighting system can supply power normally without interfering with the operation of subsequent lighting equipment.

3、 Product advantages: safe, convenient, and reliable

Integrated design, space saving: The lighting electrical ready board with built-in SPD integrates the lighting distribution unit and surge protection unit together, without the need for additional separate installation of SPD equipment, greatly saving installation space, especially suitable for places with limited space such as building electrical shafts and computer rooms. At the same time, integrated design also reduces the number of connection points in the circuit, reducing the risk of faults caused by poor circuit connections.

Easy installation and simple maintenance: This type of electrical ready board has completed the connection and debugging of SPD and distribution unit before leaving the factory. During on-site installation, only the wiring and fixing of conventional lighting electrical ready boards need to be carried out, simplifying the installation process and shortening the installation period. In daily maintenance, users can intuitively understand the working status of SPD through the indicator lights on the electrical ready board (such as SPD status indicator lights). When SPD malfunctions, it can be quickly located and replaced, and maintenance operations are simple and convenient.

Multiple protection, safe and reliable: In addition to absorbing lightning induced overvoltage, the high-quality built-in SPD lighting electrical ready board also has functions such as overload protection and short circuit protection. When the lighting system experiences overload or short circuit faults, the protective components such as circuit breakers and fuses in the electrical ready board will quickly act to cut off the power supply and prevent the fault from expanding. At the same time, SPD itself also has self-protection functions such as overcurrent protection and overheating protection, avoiding secondary accidents caused by SPD failures and further enhancing the safety and reliability of the entire lighting system.

4、 Applicable scenarios: Widely covering various types of building lighting systems

The lighting electrical ready board with built-in SPD, with its excellent lightning protection performance and stable power distribution function, is widely applicable to various building lighting systems with high lightning protection requirements, mainly including the following scenarios:

Civil buildings: such as residential communities, villas, apartments, etc. The lighting systems in these buildings involve the daily lives of residents, and once they are damaged by lightning induced overvoltage, it will cause great inconvenience to residents' lives. Installing a lighting electrical ready board with built-in SPD can effectively protect household lighting equipment and ensure normal electricity consumption for residents.

Public buildings: including office buildings, shopping malls, hotels, hospitals, schools, etc. These types of buildings have high pedestrian flow, frequent use of lighting systems, and often come equipped with a large number of electronic devices (such as monitoring systems, emergency lighting systems, etc.). Lightning induced overvoltage not only damages lighting equipment, but may also affect the normal operation of other electronic devices. The lighting electrical ready board with built-in SPD can provide reliable lightning protection for the lighting and related electronic equipment of the entire building, ensuring the normal operation of public buildings.

Industrial buildings: such as factory workshops, production plants, etc. The lighting system in industrial buildings is usually closely related to production equipment, and some production environments require extremely high power supply stability. Lightning induced overvoltage may cause lighting system failures, thereby affecting production progress and even damaging expensive production equipment. The lighting electrical ready board with built-in SPD can effectively resist lightning induced overvoltage, ensure the stable operation of industrial building lighting systems, and provide a good lighting environment for production work.

Outdoor lighting systems: such as road lighting, square lighting, park lighting, etc. These outdoor lighting devices are directly exposed to the natural environment and have a much higher probability of being subjected to lightning induced overvoltage than indoor lighting devices. The lighting electrical ready board with built-in SPD can provide direct and effective lightning protection for outdoor lighting equipment, reducing problems such as damage to street lamps and interruption of road lighting caused by lightning strikes, and ensuring nighttime traffic and public safety.

5、 Installation and maintenance precautions

Installation precautions:

The installation location should be chosen in a dry, ventilated, non corrosive gas, and non violent vibration environment to avoid environmental factors affecting the normal operation and service life of the electrical ready board.

The grounding system of the electrical ready board must comply with relevant specifications, and the grounding resistance should be less than or equal to 4 Ω (the specific value needs to be determined according to local lightning protection regulations and product requirements). Good grounding is the key to effectively discharging lightning induced overvoltage energy in SPDs. If the grounding is poor, the protective effect of SPDs will be greatly reduced, and even safety accidents may occur.

When wiring, it is necessary to strictly follow the requirements of the product manual to ensure that the circuit connection is firm and correct, and to avoid situations such as misconnections and omissions. Especially the wiring of the input, output, and grounding terminals of SPD must ensure good contact, and the wire cross-section should meet the current carrying requirements.

Maintenance precautions:

Regularly inspect the appearance of the electrical ready board to see if there is any damage or corrosion, and if the box door is well sealed to prevent dust and moisture from entering the box and affecting equipment operation.

Regularly check the working status of SPD and determine whether it is normal by observing the SPD status indicator light. If the indicator light displays abnormally (such as the red light on or the indicator light not on), the SPD should be tested and replaced in a timely manner to ensure that it is always in an effective working state.

Regularly inspect and tighten the wiring terminals inside the electrical ready board to prevent faults such as poor contact and heating caused by loose wiring. At the same time, clean the dust and debris inside the box to keep it clean and dry.

According to the requirements of the product manual, regular preventive tests (such as insulation resistance testing, leakage current testing, etc.) should be conducted on SPDs to promptly identify potential faults and ensure that their protective performance meets the requirements.

In short, lighting electrical ready boards with built-in surge protectors (SPDs) are an effective solution to deal with lightning induced overvoltage. They perfectly integrate power distribution and lightning protection functions, providing safe and reliable guarantees for various building lighting systems. When selecting and using such products, users should fully consider their actual needs and usage scenarios, choose high-quality products that meet national standards and regulatory requirements, and strictly follow installation and maintenance requirements to fully exert their protective effects and ensure the stable and safe operation of the lighting system.
