RXBW
RAIXIN
8537109090
RXBW Knock Down Distribution Cabinet
Construction
Material
Body: 1.5mm sheet steel Mounting plate: 2mm sheet steel Door: 2.0mm sheet steel
Surface finish
Body and door: Epoxy polyester powder coating textured finish Mounting plate: Epoxy polyester powder coating flat finish
Color
Body and door :RAL7032 RAL7035
Mounting plate: RAL 2000 OR galvanized steel

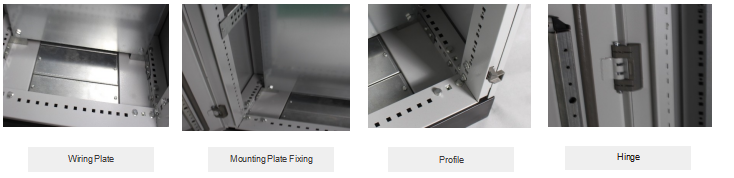

The vertical upright column comprises hinge, lock elements ,side fixing block and areall installed. Welded top
Welded base
Mounting plate slide rail Mounting plate mounting bracket Ordinary door with lock
Ordinary back panel
Side panel: 2 pieces side panels with accessories
Mode | Height(MM) | Width(MM) | Depth(MM) | No. Of Doors | Mode | Height(MM) | Width(MM) | Depth(MM) | No. Of Doors |
RXBW 12060/40 | 1200 | 600 | 400 | 1 | RXBW 180120/50 | 1800 | 1200 | 500 | 2 |
RXBW 12060/60 | 1200 | 600 | 600 | 1 | RXBW 180120/60 | 1800 | 1200 | 600 | 2 |
RXBW 12060/80 | 1200 | 600 | 800 | 1 | RXBW 20060/40 | 2000 | 600 | 400 | 1 |
RXBW 12080/40 | 1200 | 800 | 400 | 1 | RXBW 20060/50 | 2000 | 600 | 500 | 1 |
RXBW 12080/60 | 1200 | 800 | 600 | 1 | RXBW 20060/60 | 2000 | 600 | 600 | 1 |
RXBW 12080/80 | 1200 | 800 | 800 | 1 | RXBW 20060/80 | 2000 | 600 | 800 | 1 |
RXBW 14060/40 | 1400 | 600 | 400 | 1 | RXBW 20080/40 | 2000 | 800 | 400 | 1 |
RXBW 14060/60 | 1400 | 600 | 600 | 1 | RXBW 20080/50 | 2000 | 800 | 500 | 1 |
RXBW 14060/80 | 1400 | 600 | 800 | 1 | RXBW 20080/60 | 2000 | 800 | 600 | 1 |
RXBW 14080/60 | 1400 | 800 | 600 | 2 | RXBW 20080/80 | 2000 | 800 | 800 | 1 |
RXBW 14080/80 | 1400 | 800 | 800 | 1 | RXBW 200100/40 | 2000 | 1000 | 400 | 2 |
RXBW 16060/60 | 1600 | 600 | 600 | 1 | RXBW 200100/50 | 2000 | 1000 | 500 | 2 |
RXBW 16060/80 | 1600 | 600 | 800 | 1 | RXBW 200100/60 | 2000 | 1000 | 600 | 2 |
RXBW 16080/60 | 1600 | 800 | 600 | 1 | RXBW 200100/80 | 2000 | 1000 | 800 | 2 |
RXBW 16080/80 | 1600 | 800 | 800 | 1 | RXBW 200120/40 | 2000 | 1200 | 400 | 2 |
RXBW 18060/40 | 1800 | 600 | 400 | 1 | RXBW 200120/50 | 2000 | 1200 | 500 | 2 |
RXBW 18060/50 | 1800 | 600 | 500 | 1 | RXBW 200120/60 | 2000 | 1200 | 600 | 2 |
RXBW 18080/60 | 1800 | 600 | 600 | 1 | RXBW 200120/80 | 2000 | 1200 | 800 | 2 |
RXBW 18060/80 | 1800 | 600 | 800 | 1 | RXBW 22060/60 | 2200 | 600 | 600 | 1 |
RXBW 18080/40 | 1800 | 800 | 400 | 1 | RXBW 22060/80 | 2200 | 600 | 800 | 1 |
RXBW 18080/50 | 1800 | 800 | 500 | 1 | RXBW 22080/60 | 2200 | 800 | 600 | 1 |
RXBW 18080/60 | 1800 | 800 | 600 | 1 | RXBW 22080/80 | 2200 | 800 | 800 | 1 |
RXBW 180100/40 | 1800 | 1000 | 400 | 2 | RXBW 220100/60 | 2200 | 1000 | 600 | 2 |
RXBW 180100/50 | 1800 | 1000 | 500 | 2 | RXBW 220100/80 | 2200 | 1000 | 800 | 2 |
RXBW 180100/60 | 1800 | 1000 | 600 | 2 | RXBW 220120/60 | 2200 | 1200 | 600 | 2 |
RXBW 180120/40 | 1800 | 1200 | 400 | 2 | RXBW 220120/80 | 2200 | 1200 | 800 | 2 |
