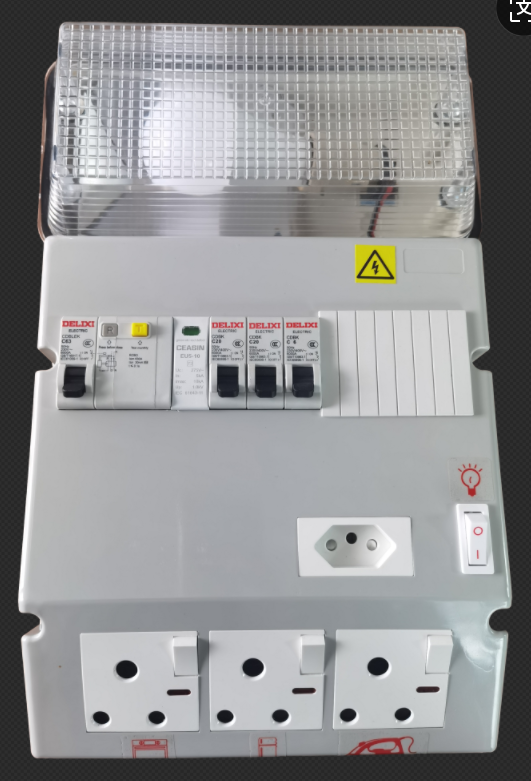

Is it necessary to install surge protectors (SPDs) in lighting electrical ready boards to address the unstable power supply in rural Africa? What are the selection parameters for SPD?

In the context of unstable power supply in rural Africa, surge protectors (SPDs) must be installed in lighting electrical ready boards. The core reason is based on the current situation of rural power supply in Africa and the hazards of surges

The infrastructure of rural power grids in Africa is weak (such as in Kenya and other regions), with long transmission lines and large load fluctuations. Voltage fluctuations often exceed ± 20%, and in extreme cases can reach ± 30%, which can easily cause internal operational surges (such as instantaneous overvoltages caused by switch actions and short circuit faults) and damage lighting equipment and components inside electrical ready boards;

Most rural areas in Africa are prone to lightning, and outdoor power lines are mostly overhead, making them susceptible to direct or induced lightning strikes. Lightning surges can invade electrical ready boards through the lines, directly damaging equipment such as circuit breakers and lighting drivers, and even causing power outages;

African rural lighting often uses LED lamps, and their drivers are extremely sensitive to voltage spikes. Even a brief surge can cause driver failure and lamp damage. Installing SPD can significantly reduce maintenance costs and avoid the trouble of frequent equipment replacement;

In unstable power supply scenarios, frequent operation of power grid switches (such as load switching to cope with voltage fluctuations) can easily lead to overvoltage. SPD can clamp the amplitude of overvoltage, protect the stable operation of electrical ready boards and downstream lighting systems, and reduce the frequency of power supply interruptions.

The core principles for selecting SPD parameters for rural lighting electrical ready boards in Africa (based on scenario adaptation, with priority given to adapting to local power grids and climate characteristics) include adapting to low-voltage lighting scenarios in African rural areas (mostly 220V single-phase), withstanding grid fluctuations, strong lightning resistance, and adapting to high temperature, high humidity, sand and dust environments. The specific parameters are as follows:

Core electrical parameters (mandatory) Maximum continuous operating voltage (Uc): adapted to the voltage fluctuation characteristics of rural areas in Africa, it is recommended to choose 275V~385V for single-phase lighting systems (for conventional 220V systems, ± 30% voltage fluctuation margin is reserved, matching the common input range of 323V-457V in the local area);

Nominal discharge current (In, 8/20 μ s): Considering the rural lightning intensity, it is recommended to choose 5kA~10kA; Areas with frequent lightning strikes (such as central and eastern Africa) can be upgraded to 10kA~15kA to meet the needs of outdoor lighting protection [6]; Maximum discharge current (Imax, 8/20 μ s): ≥ 1.5 times In, it is recommended to choose 10kA~20kA to ensure that it can withstand extreme surge current impact and avoid damage to the SPD itself;

Voltage protection level (Up): ≤ 2.5kV, priority should be given to ≤ 1.8kV, which should be lower than the withstand voltage of lighting equipment (especially LED drivers) to ensure that the voltage can be clamped within a safe range during surges and protect downstream equipment [6]; Test category and protection mode: Select Class II test (T2 level) SPD, suitable for lighting electrical ready board scenarios; The protection mode prioritizes L-N, L-PE, and N-PE (single-phase system) to comprehensively resist surges between phase lines, neutral lines, and ground lines.

Environmental adaptation parameters (adapted to rural scenes in Africa)

Working temperature range: In rural Africa, there is a large temperature difference between day and night, with high temperatures and heat. It is recommended to choose -25 ℃~+65 ℃, and in some high-temperature areas, it can be increased to+70 ℃ to avoid SPD performance degradation caused by high temperatures; Protection level (IP) of the enclosure: In rural areas with high levels of dust and mosquitoes, it is recommended to choose IP54 or above to prevent dust and rainwater from entering the SPD, causing short circuits or performance failures; Environmental adaptability: Priority should be given to selecting models that are resistant to sand and dust, and moisture to avoid insulation failure caused by high humidity and dust, and to adapt to the harsh climate conditions in rural Africa. Additional selection requirements (to enhance practicality and safety) Installation compatibility: Choose rail type installation (suitable for conventional installation of lighting electrical ready boards), compact size, easy to arrange in small electrical ready boards; Failure indication: Equipped with intuitive failure indicator lights, it is convenient for rural operation and maintenance personnel to quickly determine the status of SPD and replace it in a timely manner (without the need for professional testing equipment); Backup protection: A backup protector (SSD) needs to be installed at the front end of the SPD to prevent short circuits in the circuit caused by SPD failures and meet the safety requirements of simple rural distribution systems; Standard compliance: Complies with the IEC 61643-11 international standard, ensuring reliable product performance and adapting to the general electrical equipment standards in Africa. Additional explanation: If the power supply for the lighting electrical ready board comes from a rural off grid photovoltaic storage system (a common form of power supply in African rural areas), additional attention should be paid to the fact that the SPD needs to be adapted to the characteristics of the photovoltaic system, and the maximum continuous operating voltage (Uc) can be appropriately increased to 320V~550V to match the output voltage fluctuation of the photovoltaic system, while also considering surge protection and system compatibility.
