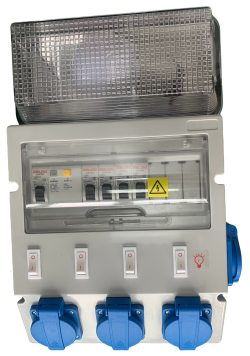

IP54 protection level rural lighting electrical ready board, fearless of African rainy season and sandstorms

A rural lighting electrical ready board with an IP54 protection level can meet the basic protection needs in rainy and sandstorm environments in Africa, but dust prevention measures need to be added for extreme sandstorm scenarios. It can effectively resist rainwater intrusion during the rainy season and ensure stable equipment operation. The following is a specific analysis:

1、 Core Capability of IP54 Protection Level

Dustproof performance (first digit "5")

It can prevent solid particles with a diameter of ≥ 1.0mm from entering, such as sand and dust, but cannot completely prevent fine dust (such as PM2.5) from entering.

Applicability: In African sandstorm environments, IP54 can block most coarse sand particles and reduce internal component wear, but it is necessary to regularly clean the accumulated sand and dust on the surface of the box to avoid affecting heat dissipation.

Waterproof performance (last digit "4")

Can withstand splashing water droplets from any direction (such as in rain curtain scenes), but cannot resist continuous water flow or high-pressure jets.

Applicability: The rainy season in Africa is mostly short-term heavy rainfall, and IP54 can prevent rainwater from seeping into the gaps of the box and protect the internal circuit. But if the installation location of the electrical ready board is low-lying or the drainage is not smooth, additional waterproof design needs to be considered.

2、 Suggestions for optimizing environmental adaptability in Africa

Sandstorm Environment Enhancement Plan

Sealing strip upgrade: using silicone or ethylene propylene diene monomer (EPDM) sealing strips to enhance the dust-proof performance at the joints of the box and reduce the intrusion of fine sand.

Dust filtering device: Install a detachable filter screen at the air inlet, clean or replace it regularly, and extend the service life of the equipment.

Tilt installation: Tilt the electrical ready board at an angle of 15 ° -30 ° to reduce the accumulation of sand and dust on the top using gravity.

Supplementary measures for rainy season protection

Elevated installation: The bottom of the electrical ready board should be at least 200mm above the ground to avoid rainwater backflow.

Drainage design: Install drainage holes at the bottom of the box and install insect proof nets to prevent internal short circuits caused by water accumulation.

Material selection: 304 stainless steel or hot-dip galvanized steel plate box is preferred to enhance corrosion resistance and adapt to high humidity environments.

3、 Comparison between IP54 and other protection levels

Protection level, dustproof ability, waterproof ability, applicable scenarios

IP54 prevents particles larger than 1.0mm from flying and splashing water (in rain curtain scenarios). African rural areas generally experience rainy season and sandstorm environments

IP65 completely dust-proof and low-pressure jet water (rainstorm) severe dust/water splash scenarios in chemical industry, ports, etc

IP67 fully dust-proof and water-resistant, 1 meter deep immersion (flood) underground pipe gallery, flood risk area

Conclusion: Rural lighting electrical ready boards with IP54 protection level can meet the basic protection needs in rainy and sandstorm environments in Africa through structural optimization and auxiliary measures. If the budget allows, it can be upgraded to IP65 for more comprehensive dust and water resistance, but the cost and actual risks need to be balanced.
