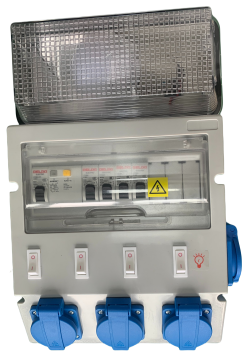

How to quickly troubleshoot single-phase grounding faults in ready boards in rural Africa?

African rural scene: rapid troubleshooting of single-phase grounding faults in lighting ready boards

Background: Many rural areas in Africa have TT grounding systems, which are prone to wet rainy seasons, aging cable insulation, contact with tree branches, unauthorized connections, oxidation and corrosion of wiring terminals, and frequent single-phase grounding (mostly high resistance grounding); The grounding fault current of the TT system is relatively small, and ordinary circuit breakers are not easy to trip. It is prone to shell electrification, zero line potential drift, intermittent faults, and can expand into phase to phase short circuits, posing a threat to personal and equipment safety. Follow the troubleshooting principle: safety first, appearance second; First, locate the branch and then confirm with the instrument; Priority is given to inside the box, followed by outdoor wiring.

1、 Preliminary identification of fault symptoms (quick judgment at the ready board end)

The following phenomenon is highly suspected of a single-phase grounding fault:

1. The leakage protector RCCB frequently trips irregularly and then trips again after resetting; Ordinary circuit breaker does not trip, but the brightness of the circuit lighting fixtures is abnormal and flashing;

2. The neutral wire has a voltage on the ground, and the lamp post has a tingling phenomenon;

3. During the rainy season and humid weather, faults are significantly aggravated, while on sunny days, faults are reduced or disappear (typical characteristics of high impedance grounding).

Safety prerequisite: Power off and test the electricity before starting work, and hang warning signs; Single phase grounding of TT system can generate dangerous contact voltage. It is prohibited to touch the box and wiring terminals without protection.

2、 Quick branching positioning inside the box (using segmented pulling method, the most efficient on-site)

1. Disconnect all branch circuit breakers in the ready board and keep the main switch closed;

2. Close the branch switches one by one, and observe whether the RCCB trips, whether there is a leakage alarm, and whether the clamp leakage current meter reads obvious residual leakage current for each circuit closed;

3. After closing a certain circuit, if it immediately trips/the leakage current significantly increases, the circuit is considered a faulty circuit, and the rest of the circuits can restore power supply, reduce the scope of the fault, and ensure power supply to other users.

African rural operation and maintenance tools are often limited, and priority is given to branch testing to lock down faulty branches without the need for complex equipment.

3、 Troubleshooting inside the faulty circuit box (after locking the branch)

1) Visual inspection (no instrument required)

Open the box door to check the faulty branch:

Wiring terminals: whether they are loose, oxidized, blackened or eroded, whether the insulation skin of the cable is damaged, and whether they are connected to the metal shell of the box or the ground bar; Terminal oxidation in high temperature and high humidity environments in Africa is a high-frequency trigger;

Switch components: whether the circuit breaker and RCCB are burned or cracked; Whether the neutral/ground wire is misconnected, and whether the phase wire is accidentally touching the grounding bar;

Incoming and outgoing cables: Check for any damage or water ingress on the outer skin of the incoming and outgoing cables, and for any condensation or water ingress inside the box.

2) Instrument measurement confirmation (priority given to 500V megohmmeter)

Disconnect the circuit switch and disconnect all loads in the circuit (all lamps and sockets are disconnected).

1. Disconnect the phase and neutral terminals of the branch, and measure the insulation resistance of the phase earth (L PE) and neutral earth (N PE) separately;

If the insulation resistance of L PE is extremely low (close to 0 or within a few hundred k Ω), it is determined that the phase line is single-phase grounded;

3. Differentiation:

Fault occurs when the switch is closed: the circuit body is grounded;

Fault occurs when only the load is connected without a circuit: grounding fault of the end lamp/user electrical appliance casing.

The high resistance grounding insulation resistance of the TT system will not be completely zero. The insulation resistance decreases significantly during the rainy season and rises on sunny days, which belongs to a typical wet grounding fault.

3) Quick auxiliary clamp leakage current meter

Under the condition of live fault circuit, passing the phase line and neutral line through the clamp meter at the same time, the measured value is the residual leakage current; The larger the leakage current, the more severe the grounding fault.

4、 After locking the faulty circuit, distinguish whether it is a fault in the box or an outdoor circuit

1. Disconnect the outgoing terminal of the faulty circuit from the switch;

2. Separate closing switch side: If it no longer trips and the insulation is normal, the fault point is outside the ready board (outdoor cables, lighting fixtures, user entry lines);

3. If the wiring still fails after disassembling the outlet, the fault point is in the wiring and switch body inside the ready board.

5、 Key investigation direction for outdoor sites (high-frequency fault points in rural Africa)

1. Overhead power lines: aging and peeling of wire insulation, contact between branches and phase lines, and flashover caused by accumulated pollution on insulators; During the rainy season, high resistance grounding is formed due to humidity;

2. User side: Improper wiring and poor wiring, with damaged insulation on the entry line; Grounding of lamp fixtures and lamp post shells;

3. Joint: Outdoor joints are not waterproof sealed, causing rainwater to infiltrate and cause phase to ground leakage;

4. Animals and external forces: Insects, snakes, and rodents damage the insulation of cables, causing wires to get close to walls and metal lamp posts.

6、 Design optimization for rural scenes in Africa (reducing troubleshooting difficulty)

1. Each outgoing branch of the lighting ready board is equipped with residual current protectors (RCCB) (which must be configured for TT systems and cannot rely solely on ordinary air switches) to quickly cut off grounding faults and avoid fault propagation; Prioritize the use of A-type RCCB that is sensitive to high impedance grounding;

2. Improve the IP protection level of the enclosure, and use anti oxidation and corrosion-resistant terminals to reduce the risk of moisture and oxidation induced failures;

3. When conditions permit, add a residual current monitoring indicator light for the branch, and the fault branch will directly display an alarm light to shorten the positioning time;

4. Standard equipment for operation and maintenance tools: 500V megohmmeter, clamp leakage current meter, and voltage tester; On site operation and maintenance personnel are proficient in the branching and pulling method, without the need for complex equipment to quickly locate.

7、 Key precautions

1. The single-phase grounding fault current of the TT system is small, and ordinary overcurrent circuit breakers cannot reliably cut it off. They cannot rely on air switches to replace RCCB protection;

2. High resistance intermittent grounding (occurring during the rainy season), do not simply close and forcefully operate, as it may cause neutral point drift and burn out user electrical equipment;

3. Before the fault is eliminated, it is forbidden to forcefully supply power to the faulty circuit to prevent fatal contact voltage.
