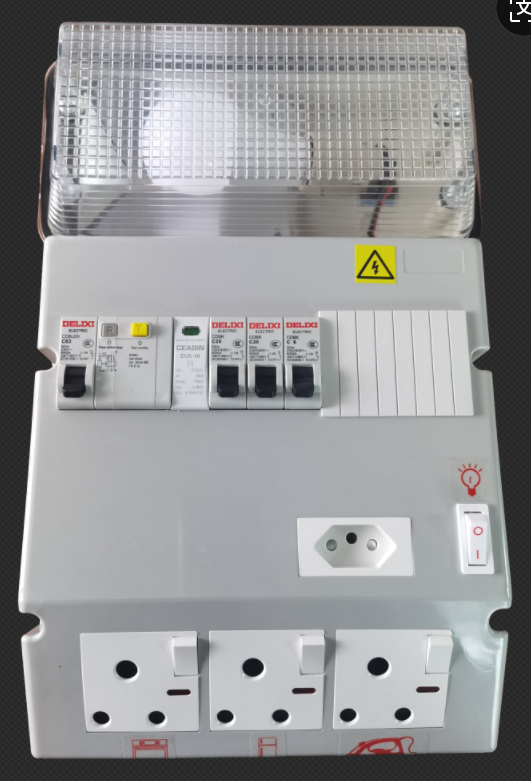

How many square millimeters should be used for the total incoming wire diameter of the lighting electrical ready board in rural Africa? What is the diameter of the branch lighting wire?

For selecting wires for rural lighting electrical ready boards in Africa, it is generally recommended to use 6-10mm ² copper core wire for the main incoming line and 2.5mm ² copper core wire for branch lighting. These recommendations are based on typical electricity usage scenarios of local rural households and reference standards from the International Electrotechnical Commission (IEC) and some African countries.

Wire selection criteria: Typical rural electricity consumption scenarios in Africa

The electricity consumption characteristics in rural areas of Africa determine the lower limit of wire specifications, mainly including:

Low load demand: The lighting load of rural lighting electrical ready boards in Africa is usually between 9-12W (mainly using LED energy-saving lamps)

Main switch current: A lighting electrical ready board designed to supply power to a single or two households, with a main switch rated current typically between 25A and 63A

Regulations and Standards Reference

Internationally, the IEC 60364 series standards are the universal standards for the design of low-voltage electrical installations and wire selection. In Africa, many countries have also developed their own standards based on this, such as:

South Africa: SANS 10142-1 "Wiring Regulations for premises" is a mandatory national standard. South Africa needs to calculate the voltage drop when selecting cables, with a generally allowed value of 5%.

Kenya: KEBS (Kenya Bureau of Standards) specifies the use of 60A service panels for many residential buildings and recommends the use of 2.5mm ² copper core cables for lighting circuits.

Important considerations and implementation points

In actual design and construction, the following points cannot be ignored:

On site load calculation is a prerequisite: the above suggestions are based on typical scenarios, and precise calculations should be made based on the actual total load in the project. It is recommended to entrust a professional electrical designer to complete this work.

Product quality is crucial: it is essential to ensure that the purchased cables pass standard certification. At the same time, it should be noted that some markets have inferior products with nominal cross-sections that do not match the actual ones.

Environmental factors and capacity reduction: The high temperature environment in some parts of Africa can affect the current carrying capacity of wires. When selecting switches and wires, a capacity reduction factor of 10% -20% should be considered.

Voltage drop verification: For long-distance power supply lines, it is necessary to calculate and ensure that the voltage drop is within the standard allowable range to ensure the normal start-up of the equipment.

When selecting wires for rural lighting electrical ready boards in Africa, safety, durability, and meeting local electricity needs are the core principles. The suggested solution is as follows:

Main incoming line: Select 6-16mm ² copper core cable.

Lighting circuit: Use 2.5mm ² copper core cable.

Other circuits: The socket circuit should be at least 4mm ², and the high-power equipment circuit should be selected as 6mm ² or larger according to the actual load. Key protection: All socket circuits must be equipped with residual current devices (RCCB).

one

Subsequent suggestions and precautions

Standard compliance: Please refer to the latest national standards of the project location (such as Kenya's KEBS standard, South Africa's SANS 10142-1, etc.) as the final basis. It is recommended to directly consult the local power department or professional institutions for the latest information.

Practical reference: In actual construction, 10mm ² wires are often used as the main incoming line to connect main switches with a capacity of 40A-63A, providing greater space for possible future electricity growth.

Professional consultation: Due to the significant differences in actual situations among African countries and regions, it is strongly recommended to consult local registered electrical engineers or authoritative electrical contractors before implementation, as they can provide the most suitable professional solutions for specific situations.
