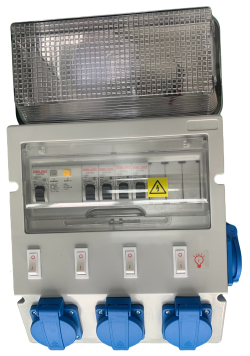

Do we need to design wire clamps for the incoming terminals of lighting electrical ready boards in rural Africa? Prevent loose wiring caused by cable tension

For lighting electrical ready boards in rural Africa, cable clamps (i.e. cable fixing heads or crimping clips) must be designed and installed at the incoming end. This is not an optional configuration, but a crucial step in ensuring the safety of electrical connections.

In the application scenarios of rural Africa, relying solely on the crimping strength of the internal wiring terminals of the electrical ready board is far from enough, mainly because:

The objective existence of external pulling force

It is very common for distribution cables in rural Africa to be pulled by external forces:

Environmental impact: Strong wind weather may cause the overhead lines to swing violently, and the tension will be directly transmitted to the internal terminals of the electrical ready board.

Animal interference: Birds, mice, or domesticated animals may climb or bite cables, causing pulling and pulling.

Human error: Local residents may pull or avoid dropped cables without their knowledge.

Prevent internal terminals from being subjected to force

If there is no wire clamp to fix the incoming wire, all external tension will directly act on the wiring terminals inside the box. This can lead to poor contact: loose terminals under stress can cause an increase in contact resistance, leading to heating and ignition, which can easily cause fires.

Component damage: Severe pulling may directly break the internal connecting wires or damage the incoming end of the circuit breaker.

Ensure the protection and sealing level

In addition to anti pull, qualified wire clamps usually also have dust-proof and waterproof functions (such as IP54). There is much dust in rural areas of Africa, and sometimes rainstorm attacks. If the wireless clip is sealed, dust and rain will penetrate into the box along the inlet gap, causing insulation degradation or short circuit.

Design suggestion: For metal conduit wiring, grounding gaskets and locking nuts should be installed inside the box to secure the conduit. For the most common cable entry, it is recommended to use waterproof gland heads with locking claws or wire clamps with protective coils to firmly clamp the cables outside the box, ensuring that the internal wiring terminals are completely stress free.
