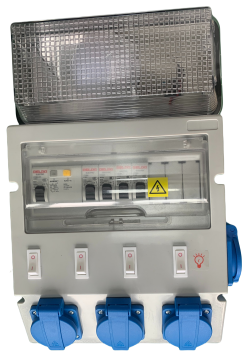

Do rural lighting electrical ready boards in Africa need to be equipped with waterproof and dustproof covers? What is the material of the waterproof and dustproof cover?

Yes, it is very necessary to equip lighting electrical ready boards with waterproof and dustproof covers in rural Africa. This is not just a "cover", but a crucial protective capability that the electrical ready board itself must possess. Given the local environmental characteristics of dusty, rainy, and strong ultraviolet rays, a box with a high level of protection is the primary line of defense to ensure safe and stable power supply.

Regarding the material of the protective cover you are concerned about, polycarbonate (PC) engineering plastic is usually recommended for rural environments in Africa. Additionally, its protection level should generally reach IP54 or higher.

The rural environment in Africa poses severe challenges to electrical equipment:

Dust intrusion: Dust storms in inland arid areas can infiltrate fine particles into equipment, obstructing heat dissipation and even causing short circuits and poor contact. Rainwater during the rainy season: In tropical grasslands and rainforests, frequent and intense rainfall during the rainy season can pose serious safety hazards. Rainwater infiltration can directly lead to electric leakage, short circuits, and even fires.

Ultraviolet radiation and temperature difference: Strong ultraviolet radiation can accelerate the aging and embrittlement of materials such as plastics. At the same time, significant diurnal temperature differences can easily lead to condensation inside the box, causing moisture and corrosion of internal components.

Therefore, a electrical ready board with waterproof and dustproof functions serves as the core safeguard against these threats.

Core: Selection of protection level (IP)

The performance of a protective cover is directly reflected in its IP protection level, which is established by the International Electrotechnical Commission (IEC). Generally, the IP code consists of two digits, with the first digit representing dust protection and the second digit representing waterproofing.

For the rural environment in Africa, there are mainly the following recommendation levels:

IP31 (minimum standard) Level 3: Prevents the entry of solid foreign objects with a diameter >2.5mm. Level 1: Prevents vertically falling water droplets. Basic protection, suitable for daily dust accumulation and light rain. Only applicable to areas with relatively good environment, strongly not recommended as the first choice for long-term outdoor installation.

IP54 (mainstream recommendation) Level 5: It can effectively prevent most dust from entering, and the amount of dust that enters will not affect the normal operation of the equipment. Level 4: It prevents water splashes from all directions and can easily handle the heavy rain during the rainy season. Gold standard. This is currently the most widely used level, achieving a perfect balance between protection performance and cost. Many products customized for the African market adopt this standard.

In simple terms, you can make your choice based on the following principles:

Budget priority: For indoor or well-conditioned environments, IP31 is the minimum requirement.

Reliability first: In most outdoor scenarios, directly opting for IP54 is the most reliable and cost-effective solution.

Material of waterproof and dustproof cover

The key to achieving these protective functions lies in the box material and sealing system. The following are the choices of core materials:

Box material

Engineering plastics (such as PC polycarbonate, ABS+PC composite materials): These are the preferred choice for rural projects in Africa due to their high cost-effectiveness and portability. By adding ultraviolet (UV) stabilizers, their weather resistance can be significantly improved, making them ideal for long-term outdoor use.

Sealing system material

Sealing strip: Typically made of silicone rubber or ethylene propylene diene monomer (EPDM), it is used for box doors and cable entry points to ensure long-term weather resistance, oil resistance, and resistance to high and low temperatures, preventing the infiltration of moisture and dust.

Cable connectors: Special waterproof cable connectors must be used for the inlet and outlet ports. The internal rubber rings are squeezed by the locking structure to achieve perfect sealing between the cables and the box body.
