Do component identification positions need to be designed in lighting electrical ready boards in rural Africa? How should the size and position of the identification position be set?

Why is it necessary to design component identification positions for lighting electrical ready boards in rural Africa?

In the specific environment of rural Africa, the role of signage is particularly prominent:

Ensuring safety and efficiency: Rural areas often lack professionally trained electrical maintenance personnel. Clear identification (such as "main switch", "indoor lighting", "socket") can enable local operators to quickly and accurately identify the circuit controlled by each component (circuit breaker, switch, etc.) without being familiar with the circuit diagram. This can effectively avoid misoperation, reduce the risk of electric shock, and quickly locate and cut off the corresponding circuit when a fault occurs, reducing the scope of power outages.

Adapting to differences in technical capabilities: Clear identification reduces the requirement for maintenance personnel's professional skills. Even non professionals can complete basic closing and opening operations or simple troubleshooting based on the markings, which is crucial for rural communities that rely on local non professionals for initial maintenance.

Easy for future expansion and renovation: With the development of villages, the demand for electricity will increase, which may involve capacity expansion or renovation of power lines. Clear identification provides clear guidance for subsequent electrical construction personnel, enabling them to accurately understand the circuit structure of the existing electrical ready board and avoid safety accidents caused by chaotic wiring.

How should the size and position of the identification position be set?

Although there are currently no mandatory international standards specifically for rural Africa, adjustments can be made based on general electrical installation specifications and practices, taking into account the actual situation in rural areas. The design should follow the principles of clarity, durability, and resistance to detachment.

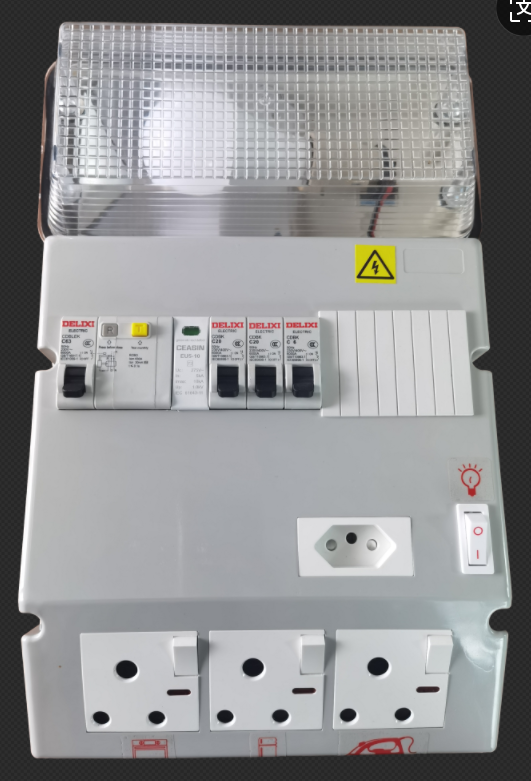

Position setting of identification bit

The core purpose of identification is to enable people to "sit in the right place", so its position must correspond one-to-one with the components. There are mainly two design ideas:

Option A: Side of Components (Recommended)

Location: Design a groove or flat area on the panel (door) of the electrical ready board, facing below or to the side of each component (such as a circuit breaker). Or on the installation base plate inside the box, adjacent to the blank space below each component.

Advantages: The corresponding relationship is the most intuitive, and the corresponding switch can be found at a glance at the label.

Implementation: Label slots can be reserved during the production of electrical ready boards, or laminated labels printed by label machines can be directly pasted, or signs can be fixed in harsh environments, such as aluminum or plastic signs fixed with nylon zip ties.

Option B: Label Summary Table

Location: On the back of the electrical ready board door, fix a transparent file bag or paste a general circuit identification table. List each component number and the room or equipment it controls in order in the table.

Advantages: Can accommodate more detailed information, neat and beautiful.

Disadvantage: The corresponding relationship is not intuitive enough, and it requires back and forth comparison between the table and the components when viewing. Not convenient to use in poorly lit rural environments.

Design suggestion: Prioritize using option A, which is to set independent identification positions next to each component.

Size setting of identification position

The size of the identification position should ensure that it can be clearly read at a normal operating distance (usually 0.5-1 meter).

Width: It should be roughly equivalent to or slightly narrower than the width of the components above, usually recommended between 15 millimeters and 25 millimeters. For example, for a common 18mm wide (1P) circuit breaker, the width of the identification bit can be 15-18mm; for a 36mm wide (2P) circuit breaker, the width of the identification bit can be 30-35mm.

Height: It is recommended to be between 8mm and 15mm, which is sufficient to print two lines of information in standard font (e.g. "lighting" up and "bedroom" down).

Tag content: It is recommended to use bilingual identification in Chinese and English (or the local common language), accompanied by simple and easy to understand graphic symbols (such as light bulbs representing lighting, socket symbols representing sockets). It is recommended to use sans serif fonts such as bold or Arial, with a font size of no less than 10 points.

summary

Designing component identification positions in lighting electrical ready boards in rural Africa is a measure that has extremely low investment costs but high safety and operational benefits. It is recommended to consider the identification position during the design phase of the electrical ready board and reserve clear label areas for the panels below each circuit breaker. If using finished boxes, making and pasting/fixing labels should also be an essential step in the installation process.

In order to provide you with more practical advice, I would like to know more: How many circuits (i.e. how many circuit breakers) will be included in the electrical ready board you designed? Is there a blank area reserved for writing on the panel of the current electrical ready board?
