Differential Circuit Breaker

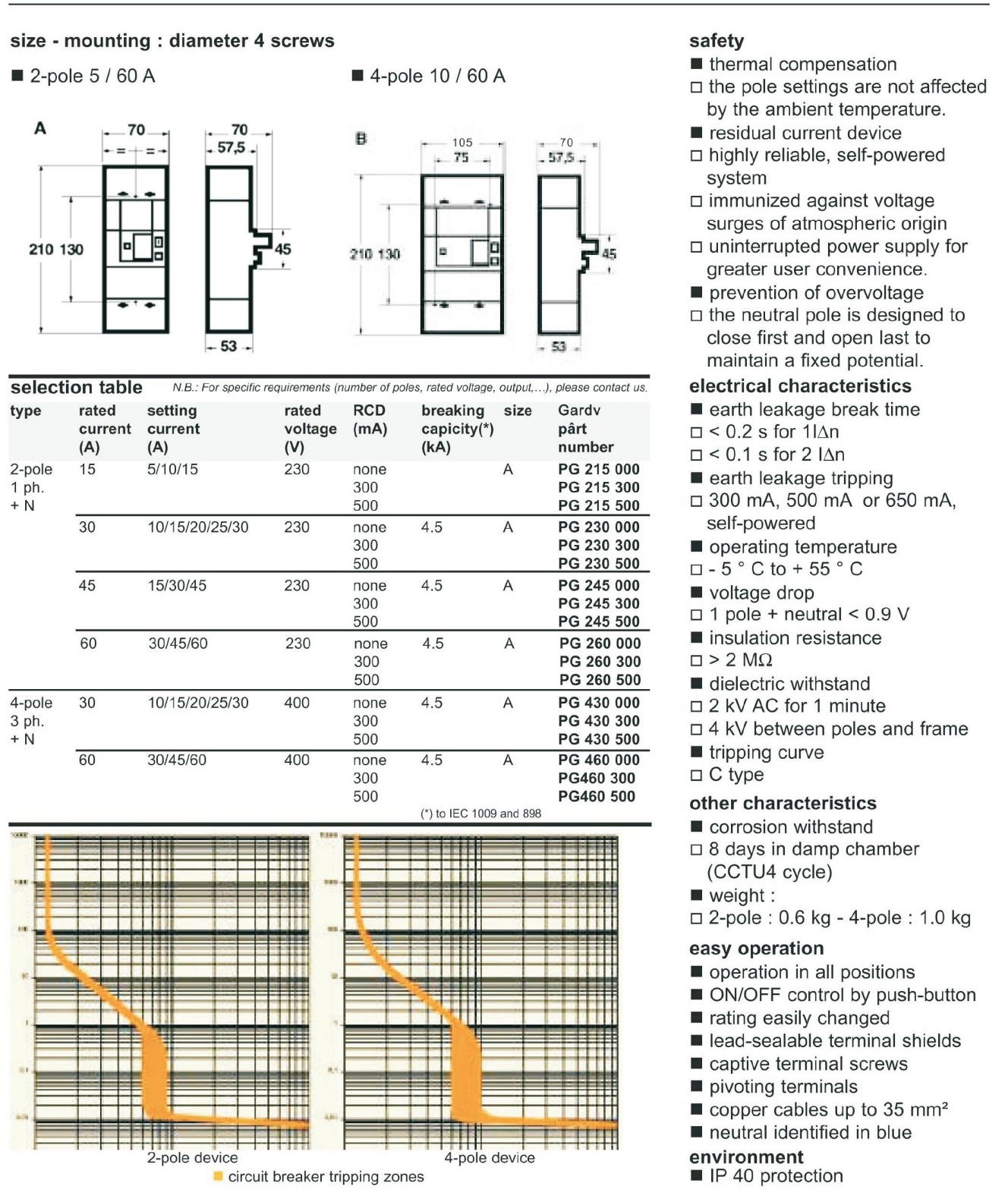

Disjonteur différentiel bipolaire 50-30 A 230 V 500 mA, Multicalibres Réglable par parlier de 5 A / Bipolar differential circuit breaker 50-30 A 230 V 500 mA, Multicalibers Adjustable by 5 A stepper.

Disjonteur différentiel tétrapolaire 10-60 A 230 V/ 400 V 500 mA Multicalibres Réglable par parlier de 10 A / Four-pole differential circuit breaker 10-60 A 230 V/ 400 V 500 mA Multicaliber Adjustable by 10 A step

Availability:

Quantity:



Inquire Add to Basket

Model:
PG

Product Description

General Protection Circuit Breker (PG)

The PG differential circuit breaker range is from 5 to 60A, (1Ph+N) or (3Ph+N), with or without earth leakage protection (300mA - 500mA or 650mA), offers the right products to fit every type of installation.

Operating Principles

a) service connections are the interface between the utility and the end-user customer.

b) they connect the customer's electrical installation to the power distribution network.

Advantages

a) low-cost product, suitable for conventional service connections.

b) multiple rating device.

c) several levels of earth leakage sensitivity.

d) complies with the French NFC 61 450 standard.

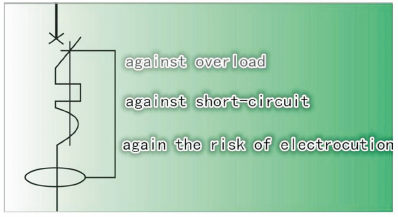

Protection of the cunsumer's installation
