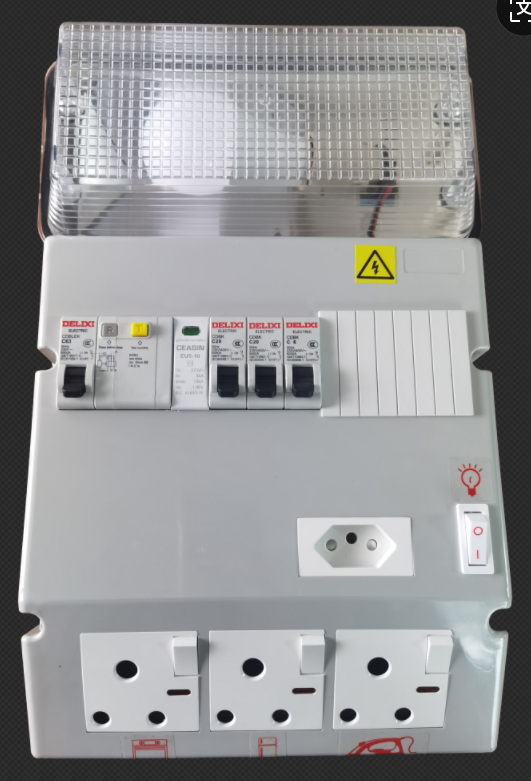

Design Scheme for Long Life African Rural Lighting Electrical Ready Board

1、 Design background and core objectives

In rural areas of Africa, there are common problems such as weak power infrastructure, complex environmental conditions (high temperature, high humidity, frequent sandstorms, and large voltage fluctuations), and lack of maintenance resources. Traditional lighting electrical ready boards often have insufficient adaptability, short lifespan, and frequent malfunctions, seriously affecting the normal lighting needs of local residents. Based on this, this product aims to achieve the core goals of "long lifespan, adaptability to harsh environments, and low maintenance costs". It has specifically developed a long-life African rural lighting electrical ready board to ensure an average time between failures (MTBF) of over 10 years, providing stable and reliable lighting power distribution guarantee for rural areas in Africa.

2、 Core design concept: With longevity as the core, it is fully adapted to the rural environment in Africa in all dimensions

The design of this lighting electrical ready board runs through the concept of "life priority, environmental adaptation, and minimalist maintenance", optimizing from multiple dimensions such as material selection, structural design, circuit protection, and component screening, improving product stability and service life from the root, while also considering the convenience of installation, use, and maintenance in rural areas of Africa, reducing later operation and maintenance costs.

3、 Key design highlight: Ensuring 10 years+trouble free operation

（1） High weather resistant material selection, resistant to harsh environmental erosion

The box adopts PC material protective structure, with a thickness of 3.0mm, and has extremely strong corrosion resistance, ultraviolet resistance, impact resistance, which can effectively resist the adverse environmental effects such as high temperature exposure in rural Africa (the maximum temperature is 60 ℃), rainstorm and flood (IP67 waterproof grade), sand and dust invasion, and avoid the failure caused by premature aging of the box. The internal insulation components are made of high temperature resistant and aging resistant flame-retardant engineering plastic (PA66+GF30), which can be used for a long time without deformation or cracking, ensuring stable insulation performance.

（2） High precision circuit design, suitable for voltage fluctuations and overload scenarios

In response to the large voltage fluctuations (± 30%) in rural power grids in Africa, the product is equipped with a high-precision voltage stabilization module and overload protection circuit, which can automatically adjust the input voltage to ensure that the output voltage is stable within a safe range, avoiding damage to lighting equipment and internal components of electrical ready boards due to high or low voltage. At the same time, equipped with slow break fuses and thermal trip circuit breakers, the response speed is fast and the protection accuracy is high, which can effectively deal with sudden faults such as short circuits and overloads, reduce circuit damage, and extend the service life of equipment.

（3） Strict screening of electronic components to enhance the reliability of core components

The core components (such as circuit breakers, terminals, etc.) are all selected from well-known brand products, which have undergone high and low temperature cycling tests from -40 ℃ to 60 ℃, 10000 mechanical life tests, and 5000 hour aging tests to ensure stable operation in extreme environments. All components are treated with anti-oxidation and anti loosening measures, and the terminals are double fixed by crimping and welding to avoid poor contact caused by vibration and temperature differences, ensuring long-term fault free operation of the product from the core component level.

（4） Minimalist maintenance design reduces later operation and maintenance costs

The product adopts a modular structure design, with clear internal component layout and easy disassembly and assembly. Daily inspections and component replacements can be completed without the need for professional tools. At the same time, equipped with status indicator lights and fault alarm devices, it can intuitively display the operating status of the electrical ready board, quickly locate the problem area when a fault occurs, and reduce maintenance difficulty and time costs. In addition, the product has excellent sealing performance and is not prone to dust and water accumulation inside. It does not require frequent cleaning under normal use, further reducing maintenance frequency.

4、 Application value and significance

This long-life African rural lighting electrical ready board has broken through the bottleneck of short lifespan and frequent failures of traditional products in harsh environments through comprehensive optimization design. With an average fault free operation time of more than 10 years, it can significantly reduce the maintenance cost and replacement frequency of lighting power systems in African rural areas, reduce lighting interruption problems caused by equipment failures, and ensure stable electricity supply for local residents' production and life. At the same time, the product is adapted to the current situation and installation maintenance conditions of rural power grids in Africa, and can achieve long-term stable operation without the need for a professional operation and maintenance team. It has strong practicality and promotional value, providing reliable product support for the upgrading of rural power infrastructure in Africa.
