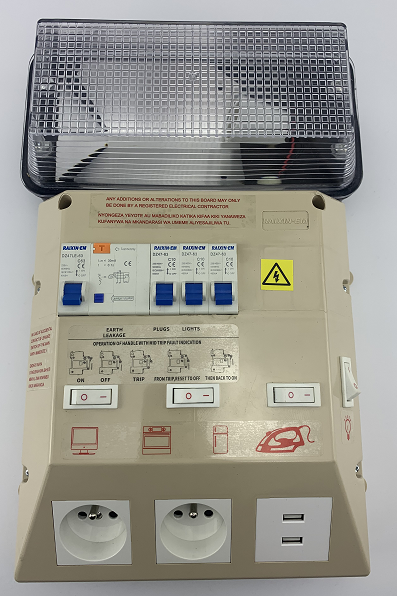

Characteristics of African Rural Lighting Electrical Ready Boards Compliant with IEC 61439 Standard

The core of the African rural lighting electrical ready board that complies with the IEC 61439 standard is to adapt to special scenarios such as high temperature, high humidity, high dust, unstable power grid, and non professional operation in African rural areas on the basis of meeting the general safety and performance requirements of the standard, forming a dual characteristic of "standard compliance+scenario adaptation", which can be divided into the following six dimensions:

1、 Strictly adhere to the core safety requirements of IEC 61439 standard

As the core benchmark standard for low-voltage complete equipment, the IEC 61439 series (including general rules and specific requirements) sets a rigid safety bottom line for electrical ready boards, which is also the basic threshold for such equipment to enter the international market:

-Full process verification to ensure reliability: It is necessary to prove compliance with key indicators such as temperature rise limit, dielectric performance, and short-circuit withstand strength through experimental verification, calculation verification, or comparative verification. For example, under rated current, the temperature rise of key parts such as busbars and wiring terminals should not exceed the standard limit to avoid insulation aging or fire risks; Capable of withstanding the electric and thermal effects generated by the rated short-circuit current, without causing harm to personnel during a short circuit.

-Graded protection against electric shock risk: Combined with the operation scenarios of non professionals in rural Africa, it mostly complies with the IEC 61439-3 special standard (requirements for distribution boards for ordinary people to operate), and the protection level after installation is not lower than IP2X, which can prevent fingers and other objects from directly touching live parts; Simultaneously equipped with a continuous and reliable protective grounding system, all exposed conductive components are effectively grounded to avoid the risk of indirect contact and electric shock.

-Standard identification and technical support: The box is equipped with clear and durable nameplates, indicating manufacturer information, rated voltage/current/frequency, short-circuit withstand strength, protection level and other key data; At the same time, provide concise and easy to understand installation and operation instructions, guide non professionals to operate correctly (such as starting and stopping switches), and clarify the requirements for contacting professionals to troubleshoot faults after tripping.

2、 Weather resistant characteristics suitable for harsh rural environments in Africa

Environmental problems such as high temperature exposure, rainstorm and flood, high humidity, and sand and dust are common in African rural areas. Such electrical ready boards have strengthened environmental adaptability in terms of structure and material:

-High protection level sealing design: The protection level of outdoor electrical ready boards generally reaches IP54 or above, and some can even reach IP65, which can effectively prevent sand and dust intrusion and rainwater erosion; All entrances and exits are equipped with sealed joints to prevent moisture and rainwater from seeping into cable gaps, suitable for installation environments in rural areas or simple sheds.

-Weather resistant material and anti-corrosion treatment: The shell is mostly made of PC composite material, cold-rolled steel plate spray coating or stainless steel material, which has excellent heat resistance, moisture resistance, and anti-corrosion performance. It can resist material aging caused by high temperature exposure, as well as corrosion problems caused by high humidity (relative humidity ≤ 95%, no condensation) in the rainy season; Some products have strengthened anti-corrosion coatings for salt spray environments in coastal rural areas.

-Wide temperature range operation capability: Designed to adapt to an environmental temperature range of -10 ℃ to+40 ℃ or even wider, it can withstand the high temperature roasting in tropical Africa and also adapt to the day night temperature difference in some high-altitude rural areas, ensuring that internal components work normally under extreme temperatures and avoiding protection function failure due to high or low temperatures.

3、 Practical functions for adapting to rural power grid and lighting needs

Considering the instability of rural power grids in Africa, scattered lighting loads, and the potential need to balance simple power consumption, the functional design focuses on "stable distribution+precise protection+flexible adaptation":

-Full link circuit protection function: The core is equipped with high-quality circuit breakers, leakage protectors, and other components, which can quickly respond to common faults such as overload, short circuit, and leakage in rural power grids, cut off the faulty circuit, and avoid line burnout or electric shock accidents; Some products have strengthened their voltage adaptation capabilities to address voltage fluctuations in the power grid, reducing equipment damage caused by unstable voltage.

-Modular circuit design: Adopting a modular structure, it supports flexible configuration of 1-6 or more lighting circuits, and can adapt to diverse needs such as scattered house lighting, courtyard street lights, and small agricultural machinery charging in rural areas; Modular design also facilitates circuit expansion based on increased household numbers or load capacity, without the need for overall replacement of the enclosure.

-Integrated and convenient functions: Some products integrate functions such as street lamp timing control, instrument indication, and electricity meter measurement, which are suitable for the centralized management needs of rural public lighting; The box doors are often equipped with transparent observation windows, which facilitate non professionals to visually check the internal operating status (such as whether the indicator lights are normal), and can determine the equipment working condition without opening the cover.

4、 Convenient installation features adapted to rural installation scenarios

African rural infrastructure is weak and installation conditions are limited. This type of electrical ready board emphasizes "simplicity, low cost, and easy fixation" in installation methods and structural design:

-Diversified and easy installation methods: Supports pole installation (suitable for rural road light poles and utility poles), wall mounted installation (suitable for house walls), floor mounted installation (suitable for centralized distribution points) and other methods. Among them, pole mounted products are often equipped with dedicated clamps, which can be quickly fixed to utility poles of different diameters without the need to pour complex bases, reducing installation difficulty and costs.

-Lightweight and structural reinforcement: The box design balances lightweight and mechanical strength, making it convenient for manual handling when there is a lack of large-scale lifting equipment in rural areas, and also able to withstand slight bumps during installation and transportation; Some floor standing products can be paired with a raised base (height ≥ 300mm) to avoid water backflow during the rainy season and meet the installation needs of low-lying rural areas.

-Clear wiring and convenient maintenance: The internal layout is neat, with sufficient wiring space reserved, and the wires are firmly fixed to reduce poor contact caused by vibration; Key components (such as circuit breakers) are installed on guide rails for easy replacement and maintenance in the future; Some products have dedicated maintenance channels, and non professionals can also perform simple visual inspections or switch reset operations after cutting off the power.

5、 Secure interaction design adapted to non professional operations

Considering the lack of professional electricians in rural Africa, operation and maintenance are mostly completed by non professionals. The interaction design focuses on "preventing misoperation+intuitive and convenient":

-Anti misoperation mechanical interlocking: The box door and main switch are equipped with interlocking mechanisms to ensure that "the lid can only be opened when the power is cut off, and the lid cannot be closed when opened", eliminating the risk of electric shock caused by live lid opening operations; The operating handle is external and clearly labeled, with clear switch positions ("on/off" markings are intuitive), reducing the probability of misoperation.

-Simplified operation and warning guidance: Abandoning complex adjustment functions, the core operation only retains switch start stop, which can be completed without professional knowledge; The surface of the box is labeled with simple operation instructions and warning signs (such as "Do not open the lid with electricity" and "After tripping, troubleshoot and reset") to guide non professionals to use it correctly.

6、 The high cost-effectiveness characteristics of adapting to rural cost budgets

The budget for rural power construction in Africa is limited, and this type of electrical ready board can improve cost-effectiveness by optimizing design to control costs while meeting standards and functional requirements

-Simplify redundant functions: Focus on the core requirements of lighting distribution, avoid redundant complex control functions (such as remote control, intelligent monitoring, etc.), simplify design while ensuring safety, and reduce manufacturing costs; Some products use standardized components for easy local procurement and replacement, reducing maintenance costs in the later stage.

-Economic design for batch adaptation: In response to the batch demand of rural centralized power supply projects, standardized cabinet design is adopted to reduce costs through mass production; At the same time, it supports customizing the number of circuits and installation methods according to project requirements, avoiding cost waste caused by excessive or insufficient functionality, and adapting to the economic affordability of different rural areas.
